RAIS Visio 70 3S has a front pane measuring 70 cm and glass on three sides. With this gas fireplace, you get to enjoy the fire from all sides. A discreet frame highlights the fire, so the flames are truly in focus. The gas fireplace has incredibly authentic and natural-looking flames that are controlled by remote control or your phone/tablet.
This model comes with a black or stainless steel frame.
Connects to natural gas, city gas, LPG or biogas.
Gallery

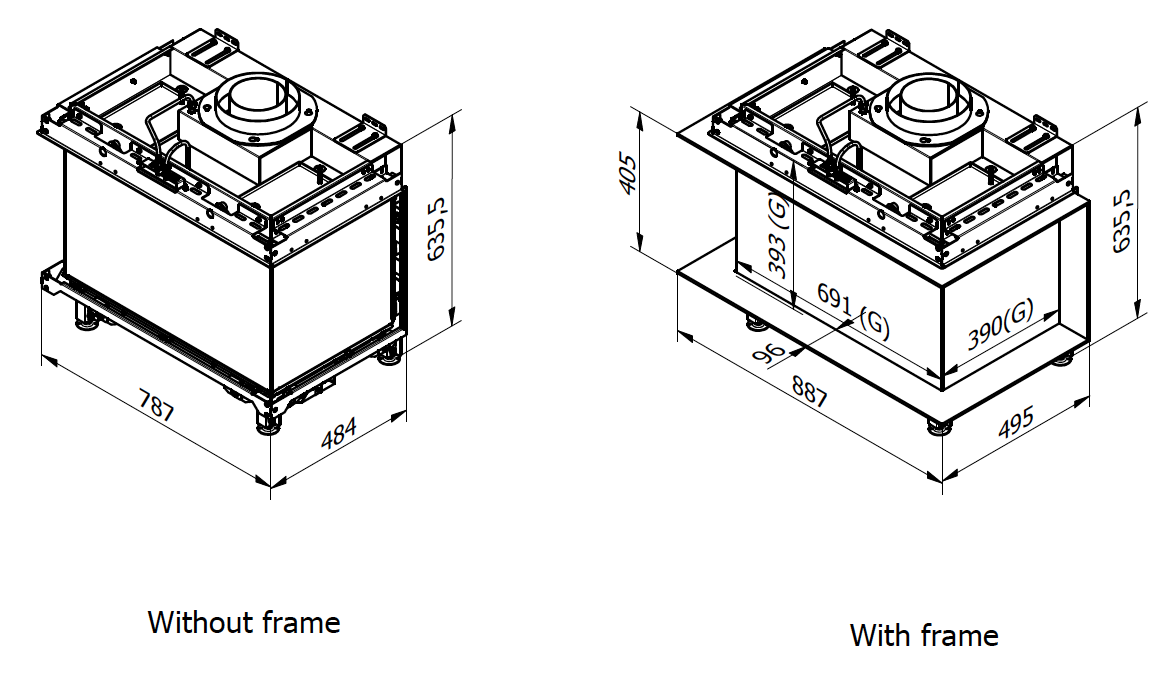

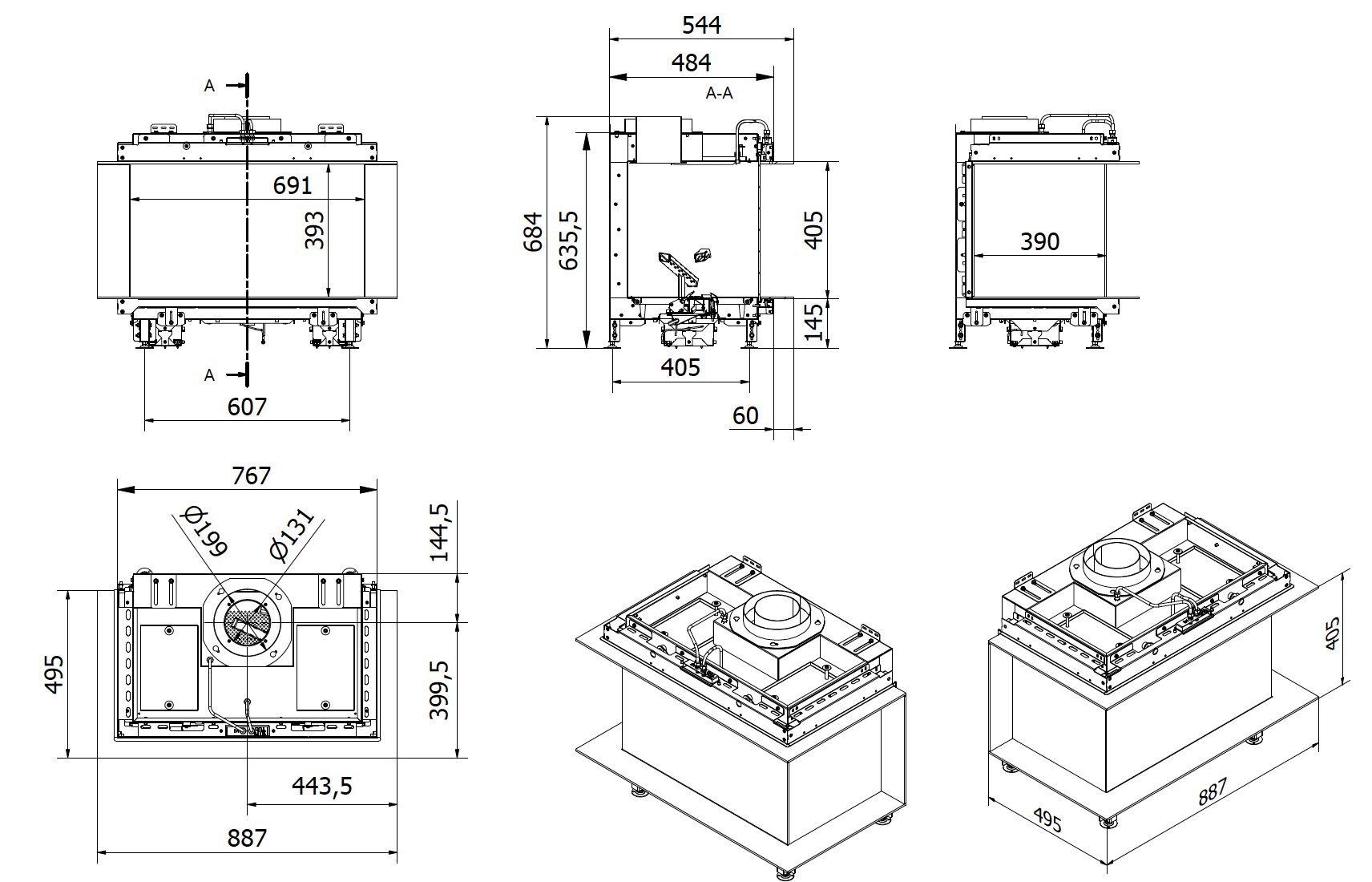

Drawings
Technical Data
-
Dimensions (W-D-H)
- External dimensions in mm:: 826 x 538 x 684
- Installation dimensions:: 769,5 x 489 x 405
- Outer frame dimensions in mm:: 769,5 x 489 x 405
- Flue outlet (diameter):: Ø100 / Ø150
- Outer diameter gas connection:: Ø8
-
Output - Natural gas: 1,9 - 8,8
- Propane: 1,8 - 8
- Efficiency in %: 91
- Weight in kg: 100
-
Distance to flammable material - To the ceiling in mm: 1000
- To the floor in mm: 150
- Distance from flammable materials to glass in mm: 500
User Manual / Installation instructions
| User/installation manual | |
| Installation manual | |
| User manual | |
| Video guide for remote control | |
Gallery
Drawings
Technical Data
-
Dimensions (W-D-H)
- External dimensions in mm:: 826 x 538 x 684
- Installation dimensions:: 769,5 x 489 x 405
- Outer frame dimensions in mm:: 769,5 x 489 x 405
- Flue outlet (diameter):: Ø100 / Ø150
- Outer diameter gas connection:: Ø8
-
Output - Natural gas: 1,9 - 8,8
- Propane: 1,8 - 8
- Efficiency in %: 91
- Weight in kg: 100
-
Distance to flammable material - To the ceiling in mm: 1000
- To the floor in mm: 150
- Distance from flammable materials to glass in mm: 500
-
User Manual / Installation instructions
User/installation manual Installation manual User manual Video guide for remote control
