RAIS Visio 90 3S

RAIS Visio 90 3S has a front pane measuring 90 cm and glass on three sides. That means you can enjoy the fire no matter where you are in the room. The flames are in focus and framed discreetly by an elegant steel frame. The gas fireplace has beautiful, natural-looking flames that are easily controlled by remote control or your phone/tablet.

Comes with a black or stainless steel frame.

Connects to natural gas, city gas, LPG or biogas.

Find dealer

More info about
RAIS Visio 90 3S ?

Gallery

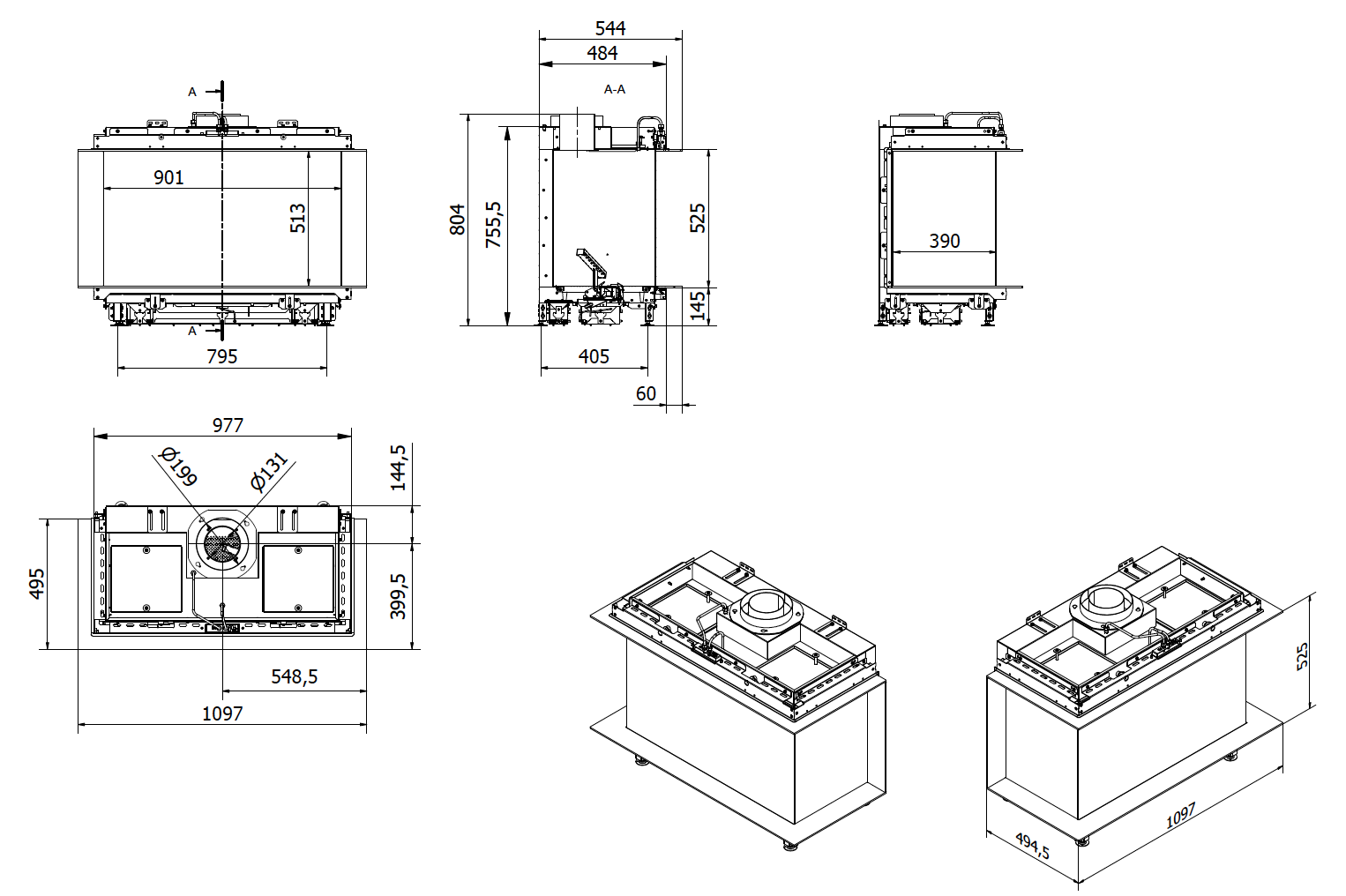

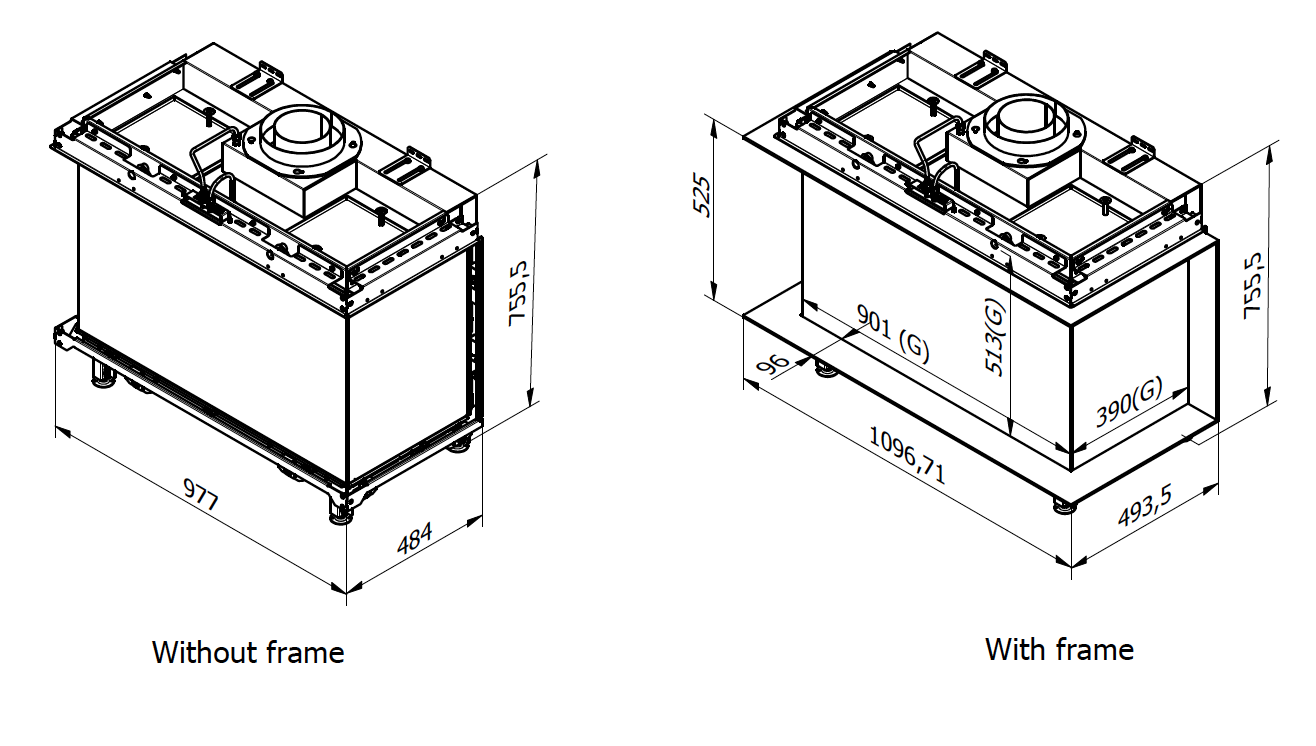

Drawings

Technical Data

Dimensions (W-D-H)
External dimensions in mm:: 1036 x 538 x 804
Installation dimensions:: 979,5 x 489 x 525
Outer frame dimensions in mm:: 979,5 x 489 x 525
Flue outlet (diameter):: Ø130 / Ø200
Outer diameter gas connection:: Ø8
Output
NATURGAS: 2,5 - 11
PROPANGAS: 2,4 - 10,8
RATED OUTPUT (KW): 80.1
Weight in kg: 135
Distance to flammable material
To the ceiling in mm: 1000
To the floor in mm: 150
Distance from flammable materials to glass in mm: 500

User Manual / Installation instructions

User/installation manual
Installation manual
User manual
