Design it yourself…
RAIS Visio 160 RC

RAIS Visio 160 RC

Energi mærkning

RAIS Visio 160 RC is the largest of the corner models with glass on the right side. The glass measures as much as 160 cm in width. The large glass pane creates an extravagant corner and truly does the fire justice. The gas fireplace has incredibly authentic and natural-looking flames, and you can easily use the remote control or your phone/tablet to turn up and down the heat.

Comes with a black or stainless steel frame.

Connects to natural gas, city gas, LPG or biogas.

Gallery

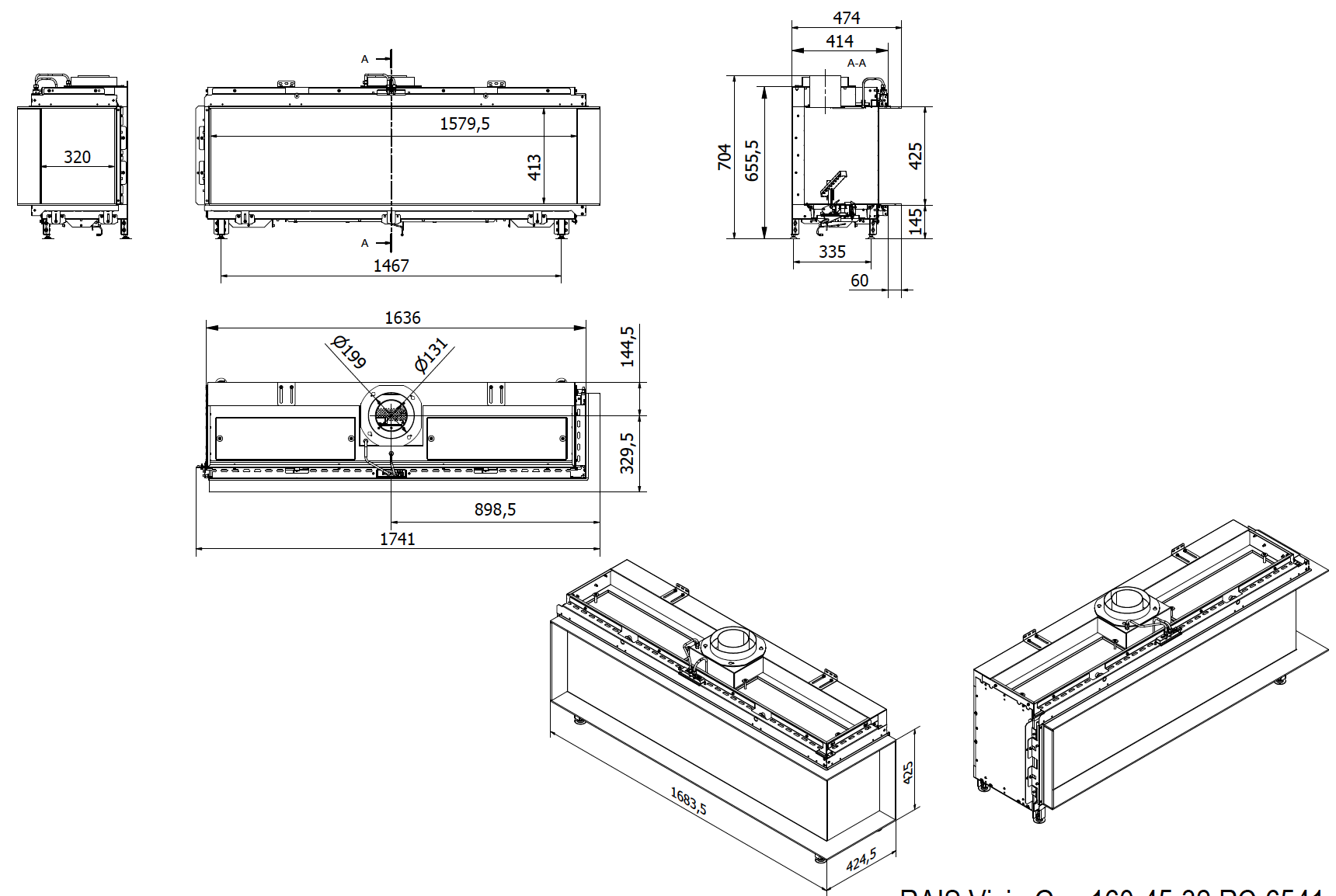

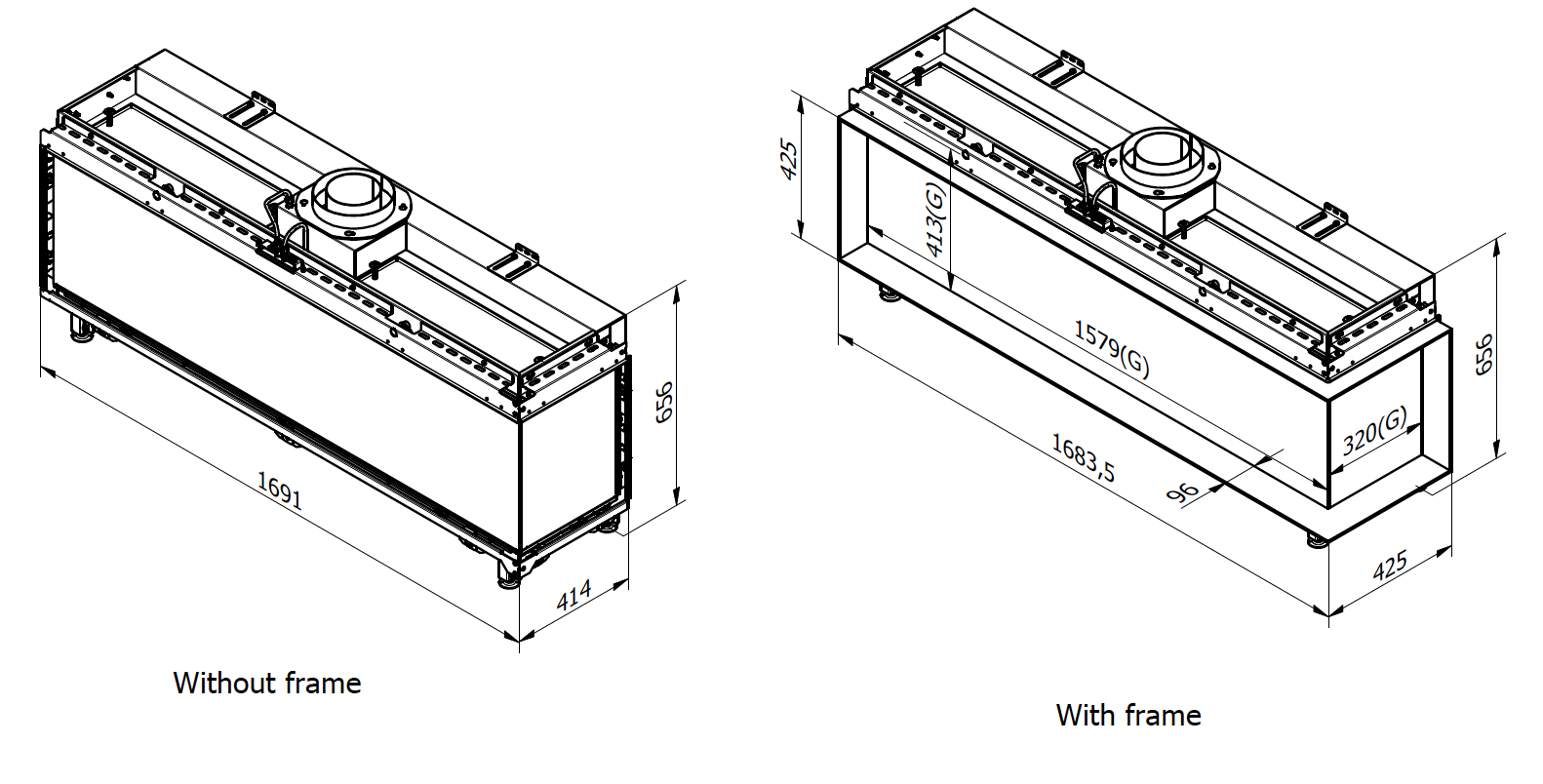

Drawings

RAIS Visio 160 RC RAIS Visio 160 RC RAIS Visio 160 RC

Technical Data

  • Dimensions (W-D-H)
  • External dimensions in mm:: 1736 x 468 x 704
  • Installation dimensions:: 1678,5 x 419 x 425
  • Outer frame dimensions in mm:: 1678,5 x 419 x 425
  • Flue outlet (diameter):: Ø130 / Ø200
  • Outer diameter gas connection:: Ø10

  • Output
  • NATURGAS: 3 - 17,2
  • PROPANGAS: 2,7 - 16,5
  • RATED OUTPUT (KW): 82.9
  • Weight in kg: 165

  • Distance to flammable material
  • To the ceiling in mm: 1000
  • To the floor in mm: 150
  • Distance from flammable materials to glass in mm: 500

User Manual / Installation instructions

User/installation manual
Installation manual
User manual
