RAIS Visio 160 LC

Find dealer
Questions about?

Are you interested in this product?

Fill in the fields and we will contact you as soon as possible.

Fill out my online form.

RAIS Visio 160 LC is the largest of the corner models with glass on the left side – measuring as much as 160 cm in width. The large glass pane helps create an extravagant corner, where the fire is truly done justice. You can use your telephone or tablet or the accompanying remote control to quickly and easily turn up and down the heat.

The frame comes in black or stainless steel.

Connects to natural gas, LPG or biogas.

  • Technical Data
    Energi - EU Energi - UK Data sheet
    External dimensions (W-D-H) in mm:
    1736 x 468 x 704
    Installation dimensions (W-D-H):
    1678,5 x 419 x 425
    Outer frame dimensions in mm:
    1678,5 x 419 x 425
    Flue outlet (diameter):
    Ø130 / Ø200
    Outer diameter gas connection:
    Ø10
    Weight in kg
    165
    Output
    NATURGAS
    3 - 17,2
    PROPANGAS
    2,7 - 16,5
    Efficiency in %
    92
    Distance to flammable material
    To the ceiling in mm
    1000
    To the floor in mm
    150
    Distance from flammable materials to glass in mm
    500

  • DRAWINGS

    Visio 160 LC 6541



    Visio 160 LC 6545



    Visio 160 LC 654401



    Visio 160 LC 654201

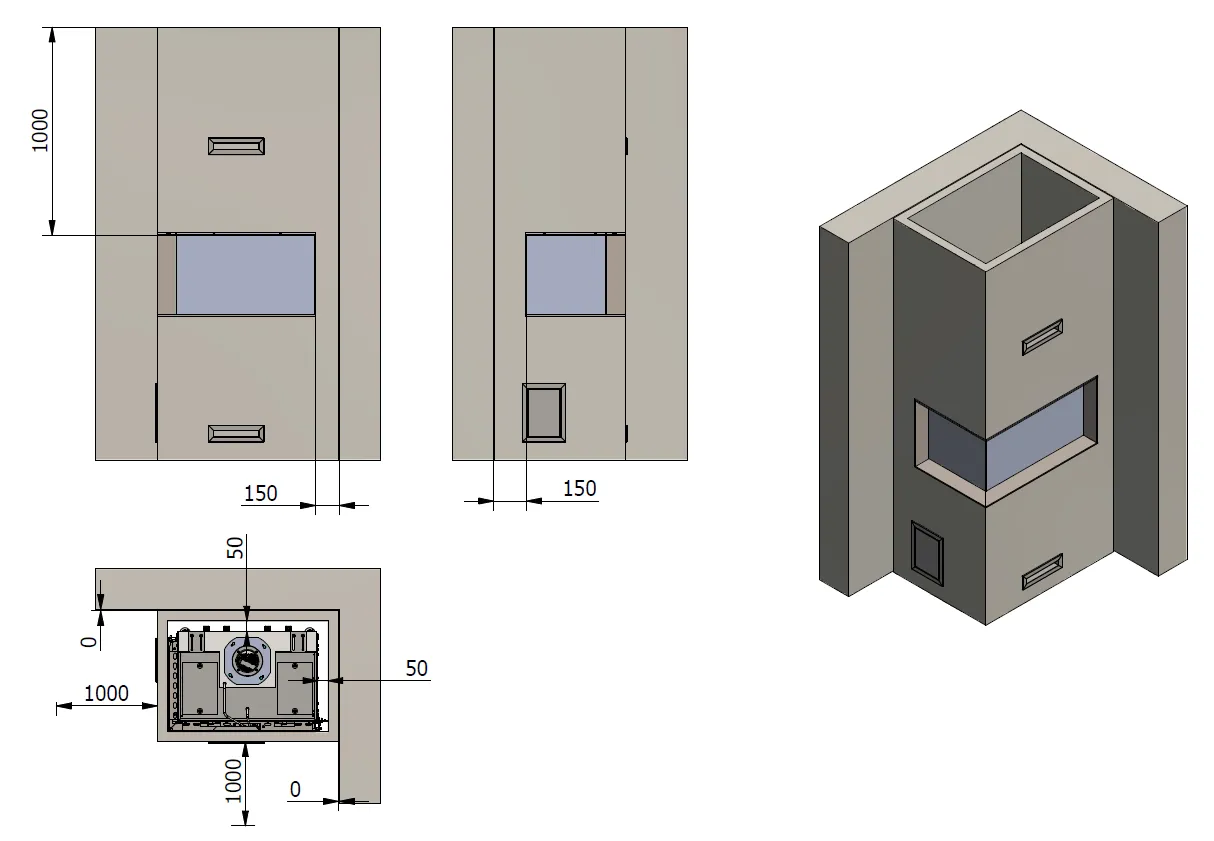

    afstand hjornemodeller

  • Documents

    User/installation manual
    Installation manual
    User manual
    Video guide for remote control
    ARRANGING CERAMIC ”LOGS” - VISIO 160 F, LC/RC & 3S
Find 3D files here
Warranty
Maintance

Accessory
