Viva L 120 is a super clean wood-burning stove – round, elegant and sculptural. The pure lines and discreet handle of the elegant curved door match the stove’s design. The large glass pane gives you an optimal view of the fire, where the flames are truly in focus. By choosing the colour, side glass, handle, top plate and much more, you are able to design the stove to suit precisely your home.
Comes with a manual damper or with CleverAir, which automatically controls the air intake and ensures optimal combustion.
This model also comes as a gas fireplace.
Gallery
Drawings

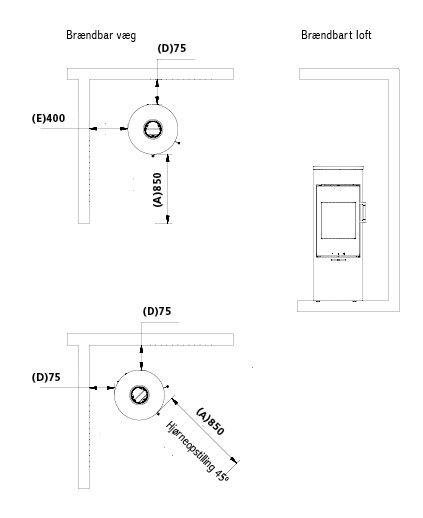

Viva L 120 without side glass

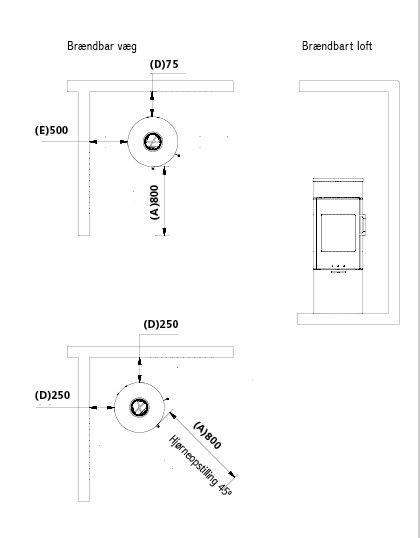

Viva L 120 with side glass
Technical Data
-
Dimensions (W-D-H)
- External dimensions (W-D-H) in mm: Ø470 - 1218 mm
- Combustion chamber inner dimensions (W-D-H) in mm: 352 - 292 - 446 mm
- Flue outlet (diameter): 150 mm
- Distance from centre to the back edge of the top plate in mm: 235 mm
- Distance from floor to the centre of the AirSystem connection: 121 mm
- Distance from floor to the centre of the flue outlet, top: 1039 mm
- Distance from floor to the centre of the flue outlet, back: 967 mm
- RATED OUTPUT (KW): 4,8 kW
-
Output - Heating (at -20°C) in m2: 40 - 110 m2
- Weight in kg: 100 kg
- - of which soapstone: 25 kg
-
Distance to flammable material - To side wall in mm: 400 mm
- To back wall in mm: 75 mm
-
Specifications - Steel door with glass: STANDARD
- Glass door: ACCESSORY
- Side glass: ACCESSORY
- Handle with different design: ACCESSORY
- Flue outlet, top and back: STANDARD
- Riddling grate and ash tray: STANDARD
- AirSystem: STANDARD
- CleverAir: ACCESSORY
- Swivel base with rotating flue collar: ACCESSORY
- Top plate, stainless steel: ACCESSORY
User Manual / Installation instructions
| User/installation manual | |
| Download installation/user manual | |
| Online installation/user manual | Online |
| User manual | Online |
| Declaration of Performance | |
Information for architects
RAIS provides CAD drawings for professional use by architects and other professionals.
To be able to use our drawings, you must have Autocad version 2000 or version 14 or similar software installed on your computer.
