RAIS Visio 70 RC

Find dealer
Get expert advice

Are you interested in this product?

Fill out my online form.

RAIS Visio 70 RC is the smallest of the corner models with glass on the right side. By incorporating this glass fireplace into a corner, you create a cosy gathering spot, where you can enjoy the flames from two sides. The gas fireplace has incredibly authentic and natural-looking flames that are easily controlled by remote control or your phone/tablet.

This model comes with a black or stainless steel frame.

Connects to natural gas, city gas, LPG or biogas.

  • Technical Data
    Energi - EU Energi - UK Data sheet
    External dimensions (W-D-H) in mm:
    826 x 538 x 684
    Installation dimensions (W-D-H):
    769,5 x 489 x 405
    Outer frame dimensions in mm:
    769,5 x 489 x 405
    Flue outlet (diameter):
    Ø130 / Ø200
    Outer diameter gas connection:
    Ø8
    Weight in kg
    100
    Output
    NATURGAS
    1,9 - 8,8
    PROPANGAS
    1,8 - 8
    Efficiency in %
    91
    Distance to flammable material
    To the ceiling in mm
    1000
    To the floor in mm
    150
    Distance from flammable materials to glass in mm
    500

  • DRAWINGS

    Visio 70 RC 6541



    Visio 70 RC 6545

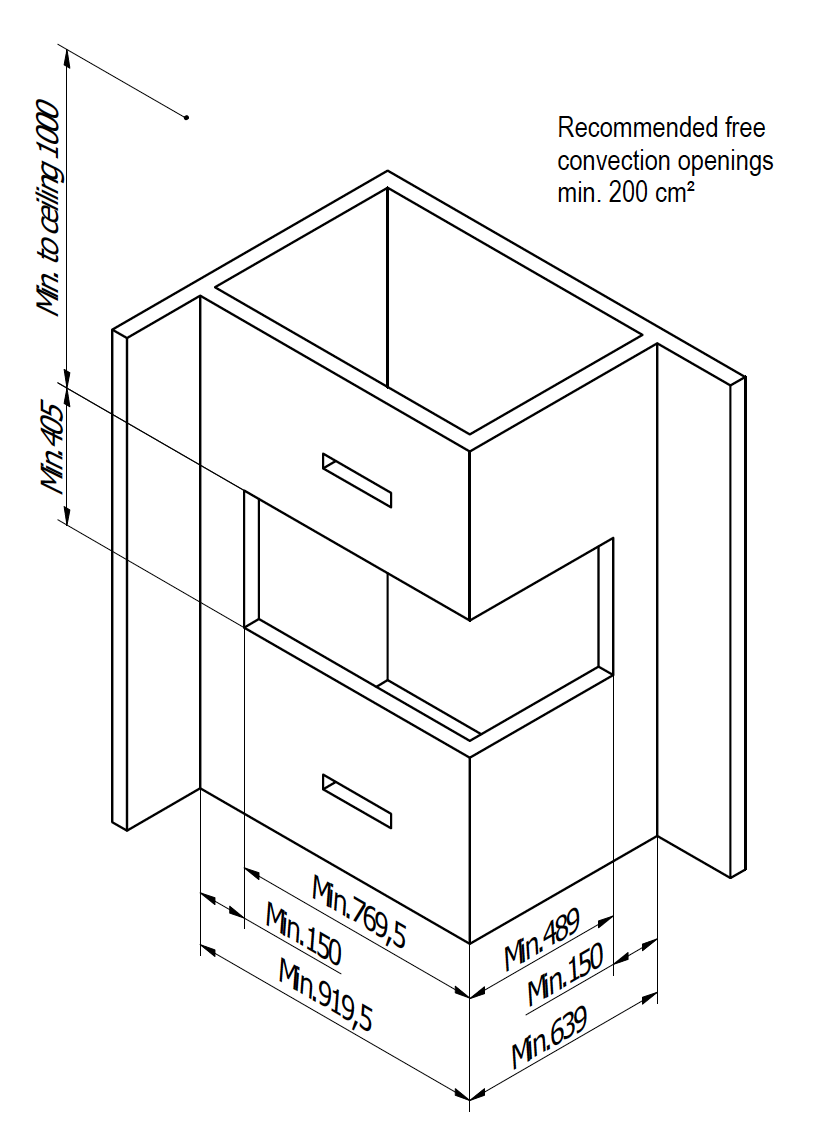

    Visio 70 RC 654401

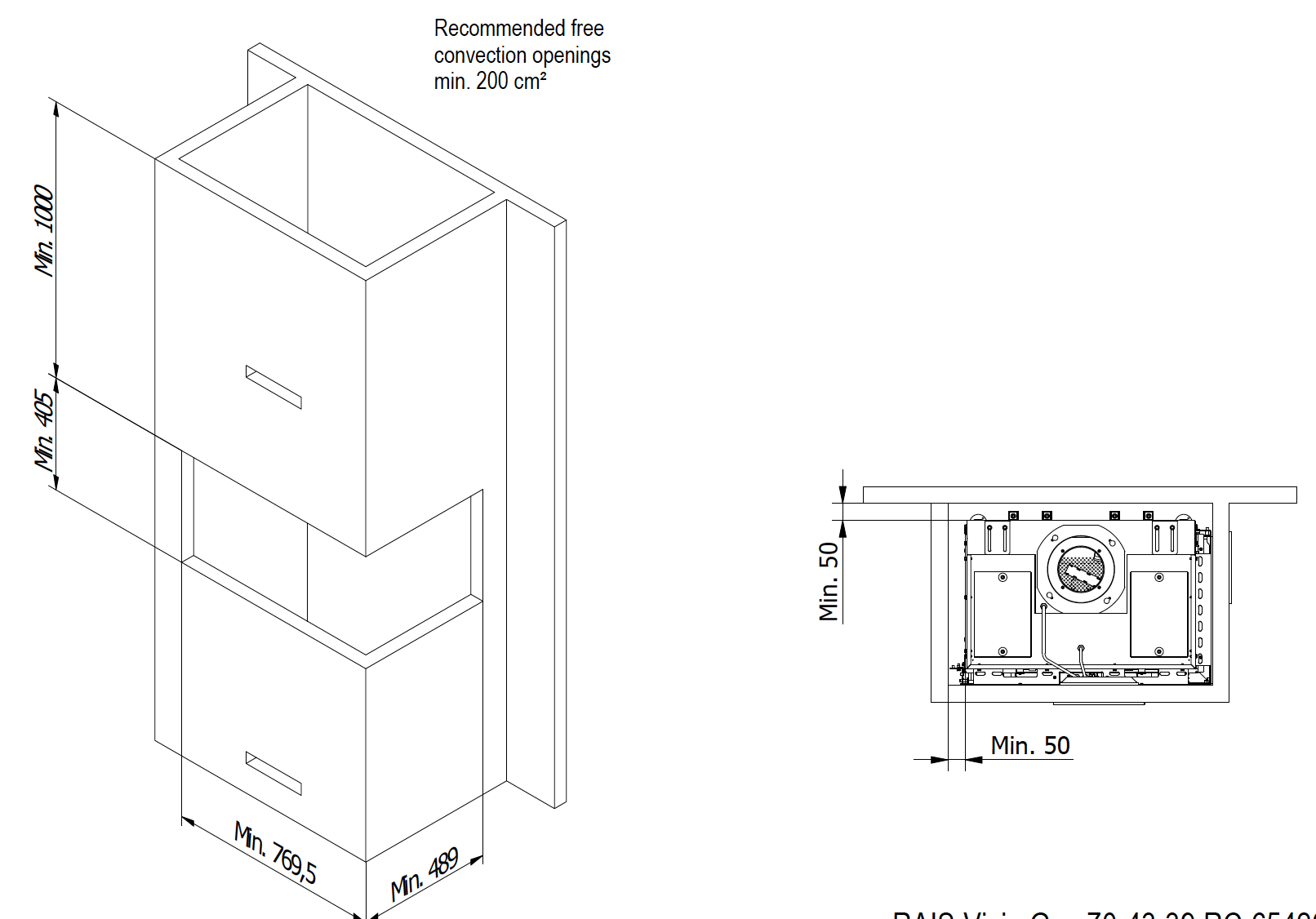

    Visio 70 RC 654201

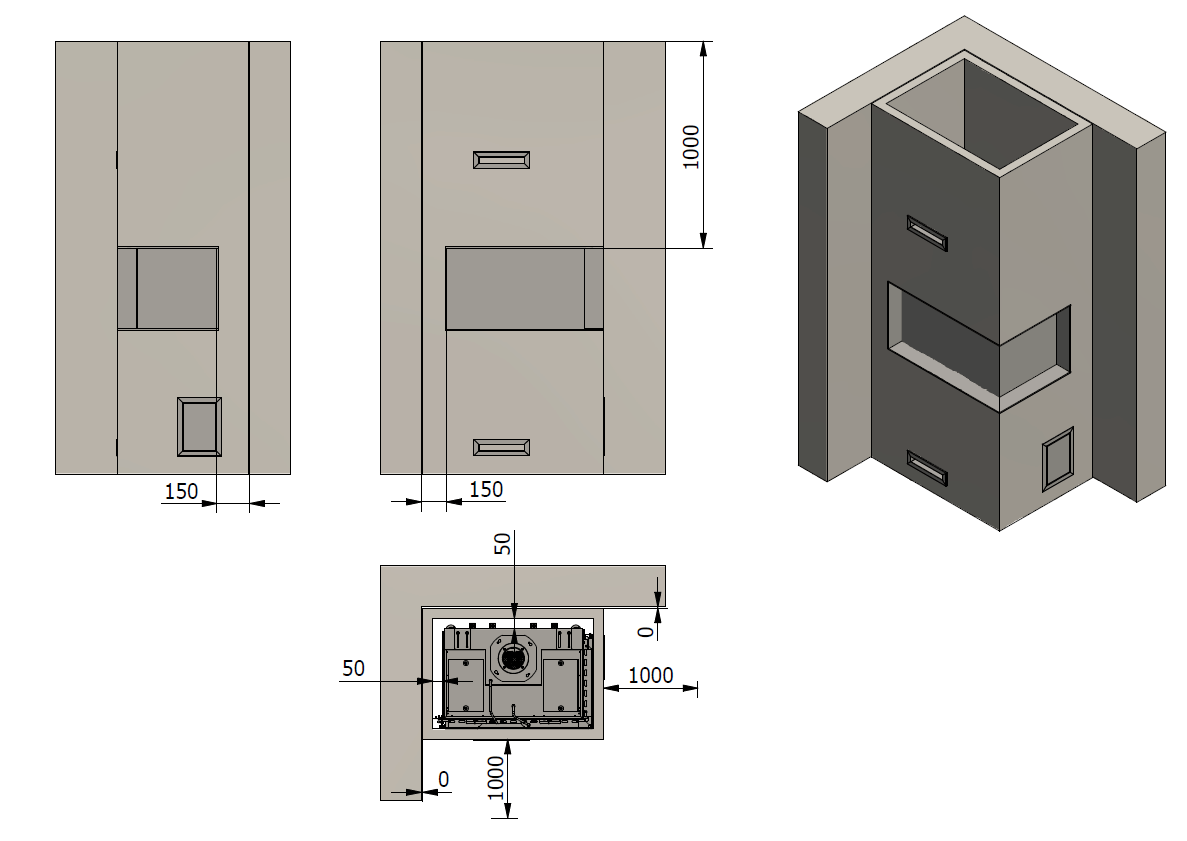

    afstand braendbart RC

  • Documents

    User/installation manual
    Installation manual
    User manual
    Video guide for remote control
    ARRANGING CERAMIC ”LOGS” - VISIO 70 F, LC/RC & 3S
Find 3D files here
Warranty
Maintance

Accessory
