With an all-glass two-sided glass door, the corner inset Visio 2 offers numerous fine design possibilities. You can install it centrally or place it in a corner. Visio adds exclusiveness to your home. The sublime design, the strong element of fire. When you open the pane, it is pushed upwards. Smart and convenient. Note the high efficiency of 80%.

SIA logo BW   HETAS Logo BW  DEFRA logo BW

Gallery

Drawings

Visio 2

Technical Data

  • Dimensions (W-D-H)
  • External dimensions (W-D-H) in mm: 833 - 593 - 1.617
  • Combustion chamber inner dimensions (W-D-H) in mm: 533 - 333 - 466
  • Installation dimensions (W-D-H) in mm: 685 - 490 - 432
  • Outer frame dimensions (W-D-H) in mm: 571 - 557 - 444
  • Flue outlet (diameter): 200

  • Output
  • Heating (at -20°C) in m2: 75 - 120
  • Efficiency in %: 80%
  • Particulates in g/kg: 6,5
  • Dust: 5 mg/ Nm3
  • Weight in kg: 259 kg
  • Additional heat accumulation stones: 84

  • Distance to flammable material
  • To side wall in mm: 300 mm
  • To back wall in mm: 75 mm
  • To the ceiling in mm: 1285 mm
  • To the floor in mm: 385 mm
  • To furniture: 1200 mm

  • Specifications
  • Glass door with black edge: STANDARD
  • Glass door with rustproof edge: ACCESSORY
  • Cover frame, black: ACCESSORY
  • Cover frame, rustproof: ACCESSORY

User Manual / Installation instructions

User/installation manual
Download installation/user manual .pdf
Online installation/user manual Online
Declaration of Performance .pdf
Prøvningsattester .pdf

Information for architects

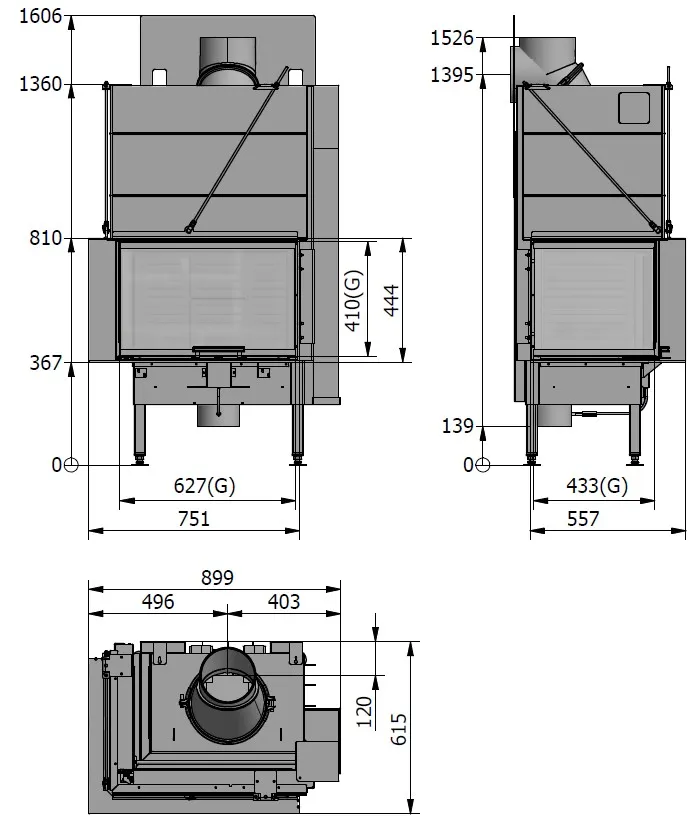

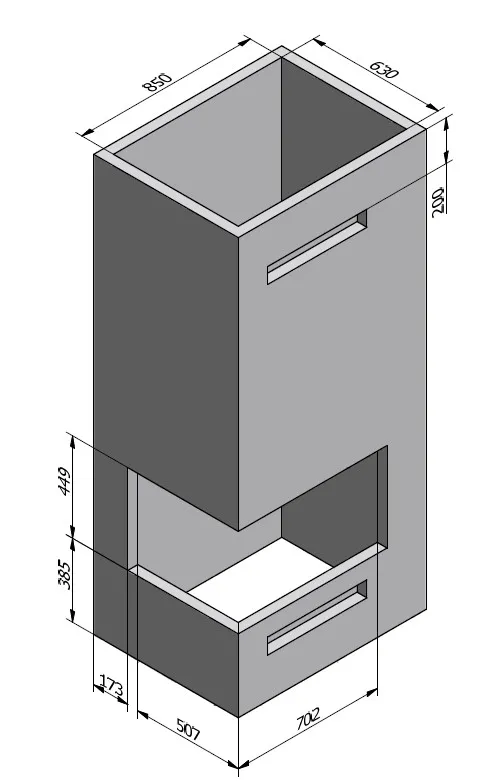

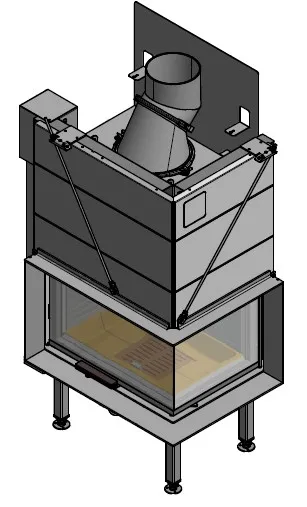

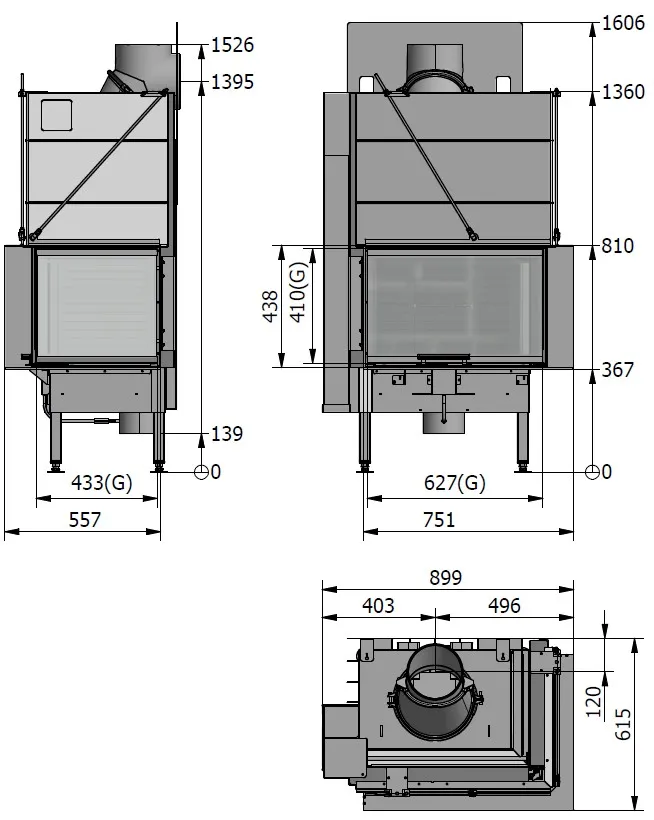

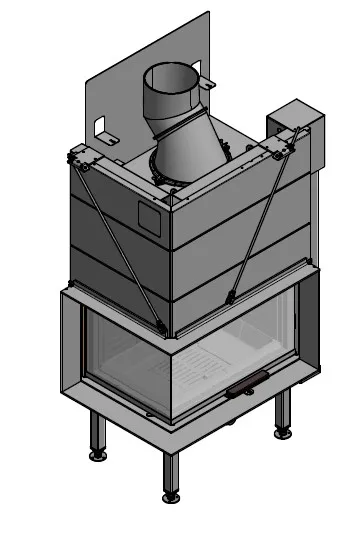

RAIS provides CAD drawings for professional use by architects and other professionals. To be able to use our drawings, you must have Autocad version 2000 or version 14 or similar software installed on your computer.
1246552 .pdf
1246552 .dxf
1246553 .pdf
1246553 .dxf
1249006-VISIO_2_left_dxf .dxf
