RAIS Convection

RAIS Convection

Convection grates are available for all our stove insets. The grates come in two different models – one with holes and one with long grooves. You simply select how large you want the convection grate to be.

The convection solution consists of a compartment for wall incorporation and a grate. Both components are designed so they fit the width of the stove exactly. The compartment has the height of a brick and is easy to install. After installation, the decorative grate is easily mounted. A clever and cleaning-friendly solution.

The grates come in the following widths:

48.9 cm - 61.4 cm - 74.6 cm - 76.4 cm - 86.4 cm - 100.2 cm


  • Fits to

    Frame outer
    Measurements
    (mm)
    H B
    Built-in box outer
    Measurements
    (mm)
    B D H
    Patern

    Conv. area
    cm²
    Q-tee
    91 489
    478 108 76
    Grate 147
    Q-tee
    91 489
    478 108 76
    Hole 160

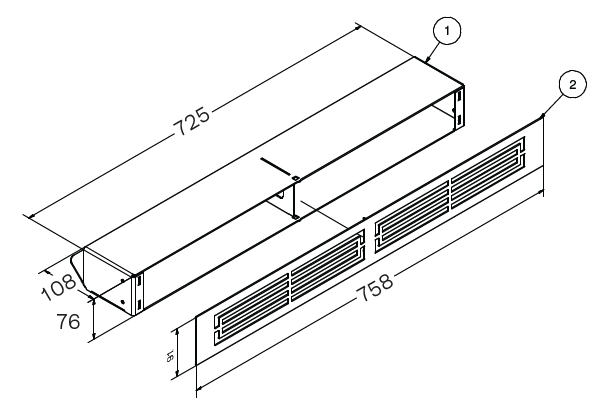

    Rais 2:1
    91 746
    725 108 76
    Grate 235
    Rais 2:1
    91 746
    725 108 76
    Hole 235
    Rais 500/1
    Rais Visio 1
    Rais Visio 2:1
    91 764
    725 108 76
    Grate 230
    Rais 500/1
    Rais Visio 1
    Rais Visio 2:1
    91 764
    725 108 76
    Hole 230

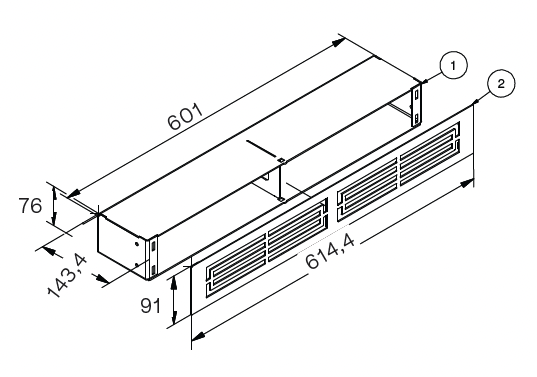

    Rais 500/3
    Rais 500/2
    Rais Visio 2+3
    91 614
    601 108 76
    Grate 190
    Rais 500/3
    Rais 500/2
    Rais Visio 2+3
    91 614
    601 108 76
    Hole 190
    Rais 700
    91 864
    825 108 76
    Grate 280
    Rais 700
    91 864
    825 108 76
    Hole 280
    Rais 900
    91 1002
    963 108 76
    Grate 320
    Rais 900
    91 1002
    963 108 76
    Hole 320
  • Technical drawings

    3round2firkant

    • Dimensions (W-D-H)
    • Installation dimensions (W-D-H) in mm: 478 - 108 - 76

    • Output

    • Distance to flammable material

    • Specifications
