RAIS Visio 2 L has extra-large panes on two sides, making this fireplace insert ideal for incorporation into a corner. With its discreet framing of the fire, it creates an elegant gathering place in your home, where the flames are truly in focus. The door opens by simply pushing the pane upwards.

The handle comes in wood, black or stainless steel.

RAIS Visio L also comes with glass on three sides.

  • Technical Data

    Combustion chamber inner dimensions (W-D-H) in mm
    660-256-545
    Installation dimensions (W-D-H) in mm
    1088-504-504
    Outer frame dimensions (W-D-H) in mm
    1086,6– 504 – 563
    Flue outlet (diameter)
    200
    Rated output
    10,3 kW
    Output
    Output (min-max) in kWh
    8 - 12
    Heating (at -20°C) in m2
    120-180
    Efficiency in %
    81
    Particulates in g/kg
    1,0
    Distance to flammable material
    To side wall in mm
    See manual
    To back wall in mm
    See manual
    To the ceiling in mm
    500
    To the floor in mm
    315
    To furniture
    1250
    Weight in kg
    293
    Additional heat accumulation stones
    42 kg - 70 kg
  • DRAWINGS

    Visio 2 L

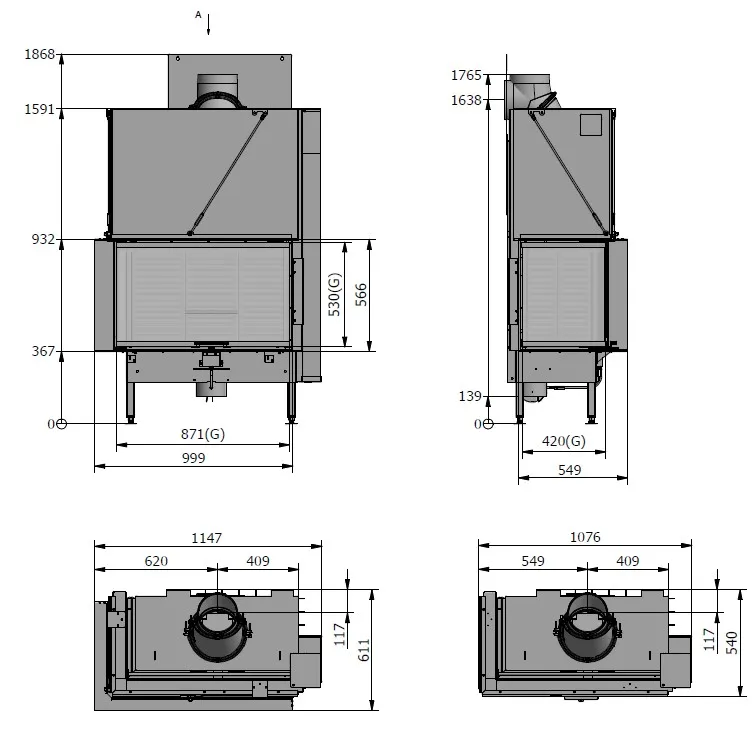

    Visio 2 L LC MåltegningVisio 2 L LC Panel indbygning Måltegning 2Visio 2 L LC Måltegning 2

  • MANUALS

    User/installation manual
    Installation manual
    User manual



    Information for architects
    RAIS provides CAD drawings for professional use by architects and other professionals. To be able to use our drawings, you must have Autocad version 2000 or version 14 or similar software installed on your computer.

    Visio 2L - Tegning .dwg
For denne model:
Låge med glas
Låge med stålramme
Med sideglas
