Design it yourself…
RAIS 2:1

RAIS 2:1

Energi mærkning

This is the stove, which adds a new dimension to your home. Continuous stoves for bricking in, with doors on both sides so that you can see the fire from two rooms - from the dining room and from the sofa. Exceptionally beautiful widescreen - a design with clean lines that matches the modern home. Highly efficient combustion keeps the panes clean even at low output. Double glass doors make it possible to place furniture close to the stove. They may be hung on the right or left. One side may be locked. The frame size can be adjusted.

HETAS Logo BW  DEFRA logo BW

Gallery

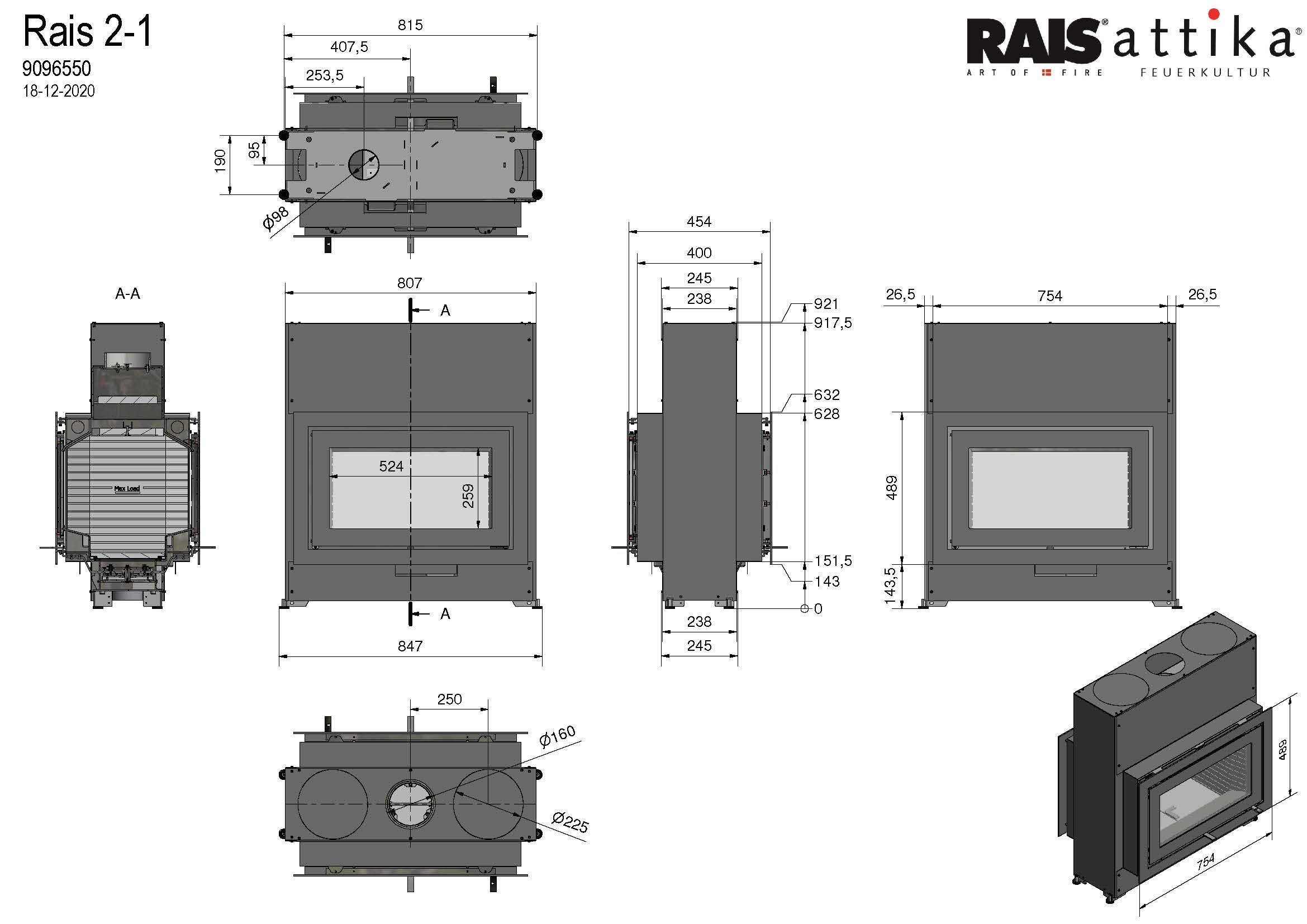

Drawings


Finished face opening
Brick Fire retardant material
tegning 2-1ny

Technical Data

  • Dimensions (W-D-H)
  • External dimensions (W-D-H) in mm: 807 - 462 - 914
  • Combustion chamber inner dimensions (W-D-H) in mm: 500 - 244 - 374
  • Installation dimensions (W-D-H) in mm: 736 - 477
  • Outer frame dimensions (W-D-H) in mm: 754 - 489
  • Flue outlet (diameter): 150

  • Output
  • Heating (at -20°C) in m2: 60 - 135
  • Efficiency in %: 79%
  • Particulates in g/kg: 3,7
  • Weight in kg: 140

  • Distance to flammable material
  • To side wall in mm: 200
  • To the ceiling in mm: 590
  • To the floor in mm: 450
  • To furniture: 600

  • Specifications
  • Glass door: STANDARD
  • Flue outlet, top: STANDARD
  • AirSystem: STANDARD
  • Frame in special dimensions: ACCESSORY
  • Telescopic legs: ACCESSORY

User Manual / Installation instructions

User/installation manual
Download installation/user manual .pdf
Prøvningsattester .pdf
Online installation/user manual Online
Declaration of Performance .pdf

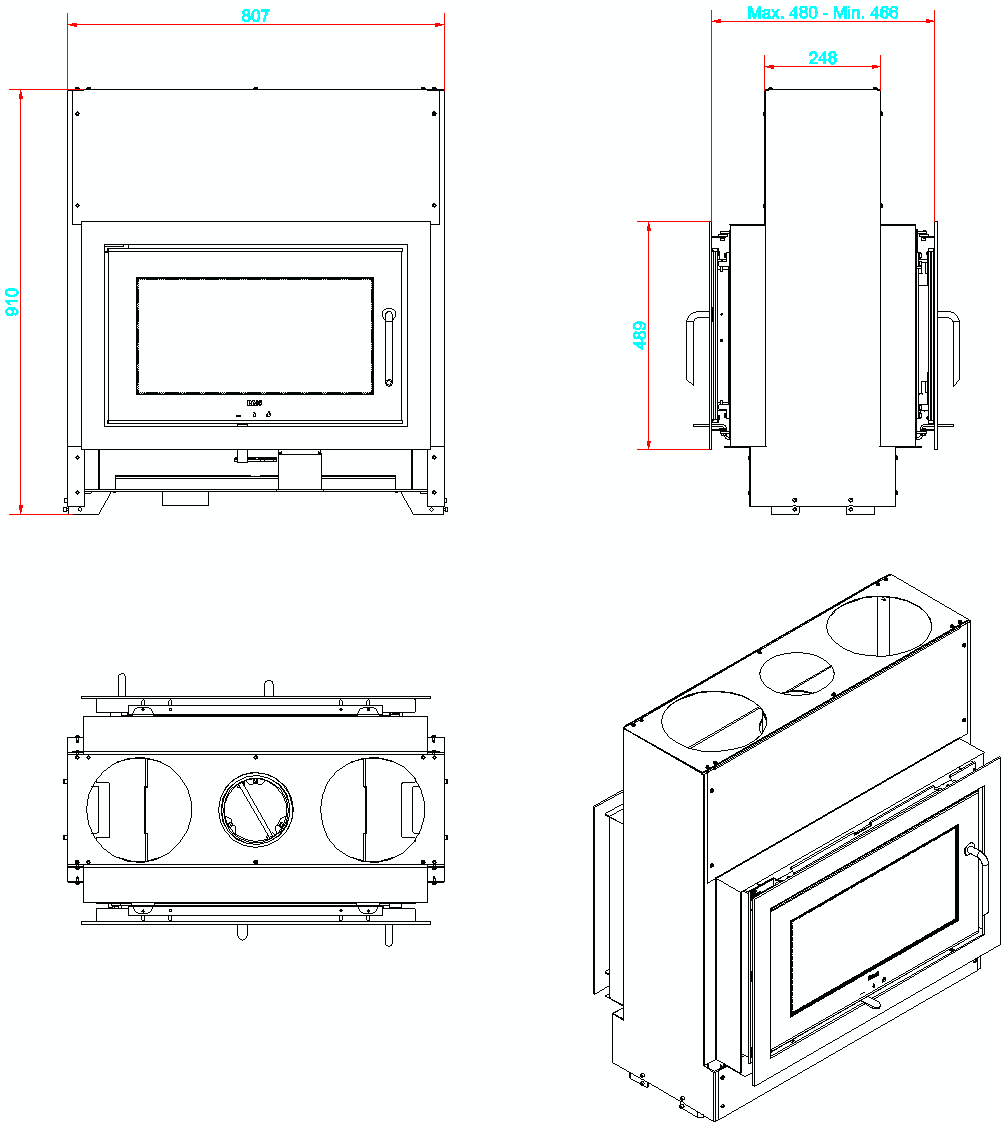

Information for architects
RAIS provides CAD drawings for professional use by architects and other professionals. To be able to use our drawings, you must have Autocad version 2000 or version 14 or similar software installed on your computer.
AutoCAD eksempel .gif
AutoCad .dxf
Rais 2-1 - 91090 .adsk
Rais 2-1 - 91090 .dwg
Rais 2-1 - 91090 .ipt
Rais 2-1 - 91090 .sat
