RAIS Q-Tee C (new)

Questions about?

Are you interested in this product?

Fill in the fields and we will contact you as soon as possible.

Fill out my online form.

Q-Tee C is a small, elegant stove with a rounded and organic look. The stove can be configured in different ways to create a range of looks. Comes with glass or steel door and round handle in black or brown leather, black oak or stainless steel.

The basic model can be placed on the floor, on a plate or a concrete bench. You can also opt to hang it from the wall, add legs (10 cm) or base (28 cm), with an open or closed firewood storage compartment.

Available with top or back outlet to the smoke duct, and with AirSystem.

  • Technical Data

    External dimensions (W-D-H) in mm
    528 - 459 - 565/665/845
    Combustion chamber inner dimensions (W-D-H) in mm
    317 - 270 - 270
    Flue outlet (diameter)
    150
    Distance from floor to the centre of the AirSystem connection
    105/205/108
    Distance from floor to the centre of the flue outlet, back
    451/551/731
    Rated output
    4,1
    Output
    Output (min-max) in kWh
    2 - 6
    Heating (at -20°C) in m2
    30 - 90
    Efficiency in %
    80 %
    Particulates in g/kg
    0,8

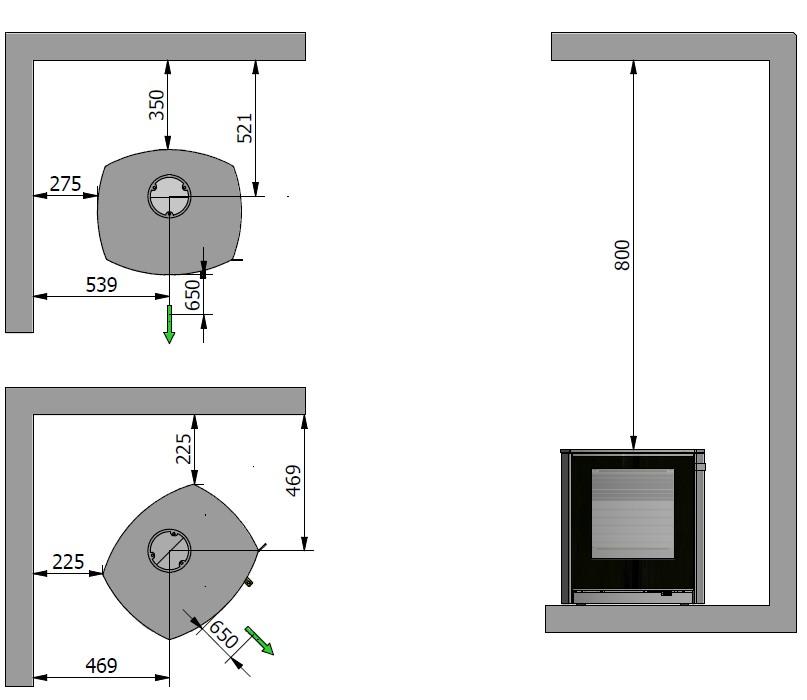

    Distance to flammable material
    To side wall in mm
    275
    To back wall in mm
    350
    Recommended distance in mm to non-flammable wall, sides and back
    50
    Steel door with glass
    Standard
    Glass door
    Accessory
    Flue outlet, top and back
    Standard
    Base
    Accessory
    Riddling grate and ash tray
    Standard
    AirSystem
    Accessory
  • DRAWINGS

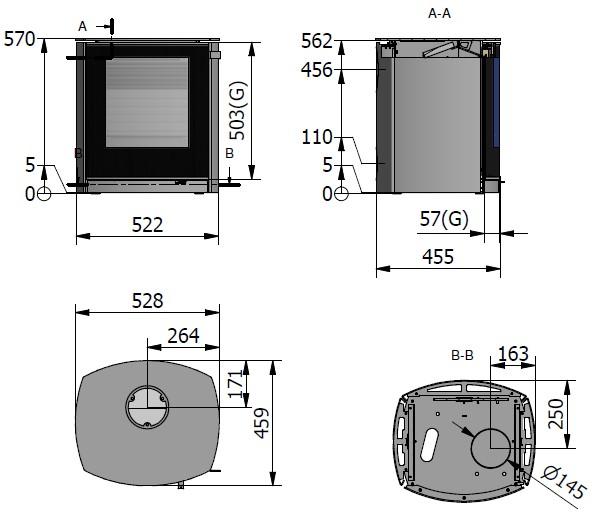

    Q-Tee C

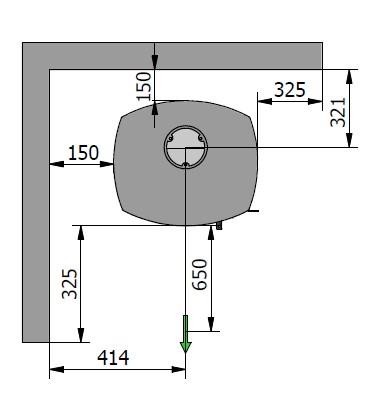

    Q Tee C MåltegningQ Tee C Afstand til brændbartQ Tee C Brannmur

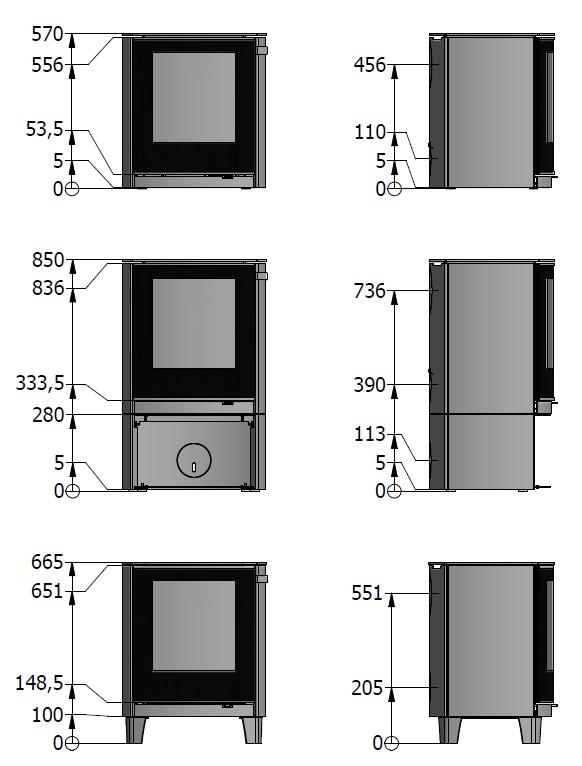

    Q-Tee C Model overview

    Q Tee C Måltegning Modeloversigt

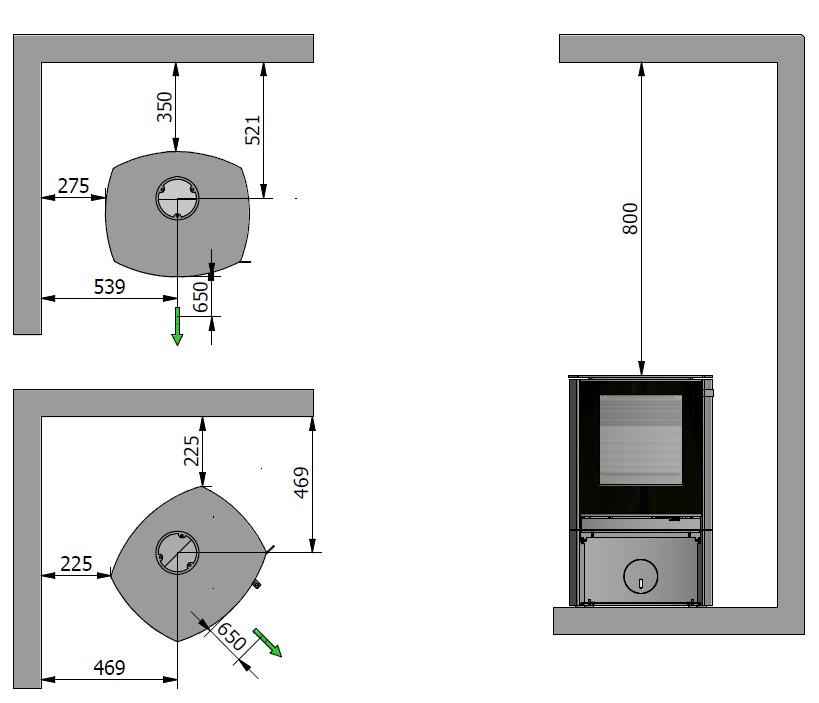

    Q-Tee C - WIth base

    Q Tee C 85 Måltegning 1Q Tee C 85 Måltegning 2

  • MANUALS

    User/installation manual
    Installation manual
    User manual
    Declaration of Performance
