Cubist. Elegant minimalist. Functional. RAIS Q-Tee 2 is a smaller stove with a very large combustion chamber - which makes it a perfectly efficient heat source for small places. This stove is suitable for coal-firing since the combustion chamber is reinforced and has extra air supply. The large window offers a magnificent view of the flames. The handle is a unique feature - a masterpiece, created by the best craftsmen. Good environmental specifications. The firewood rack on the side breaks the symmetry and is very impressive. Available with or without base.
If you are looking for extra storage space for dry firewood or books, you can add multiboxes next to your RAIS Q-Tee 2 stove.Available in all RAIS colours.
Gallery
Drawings

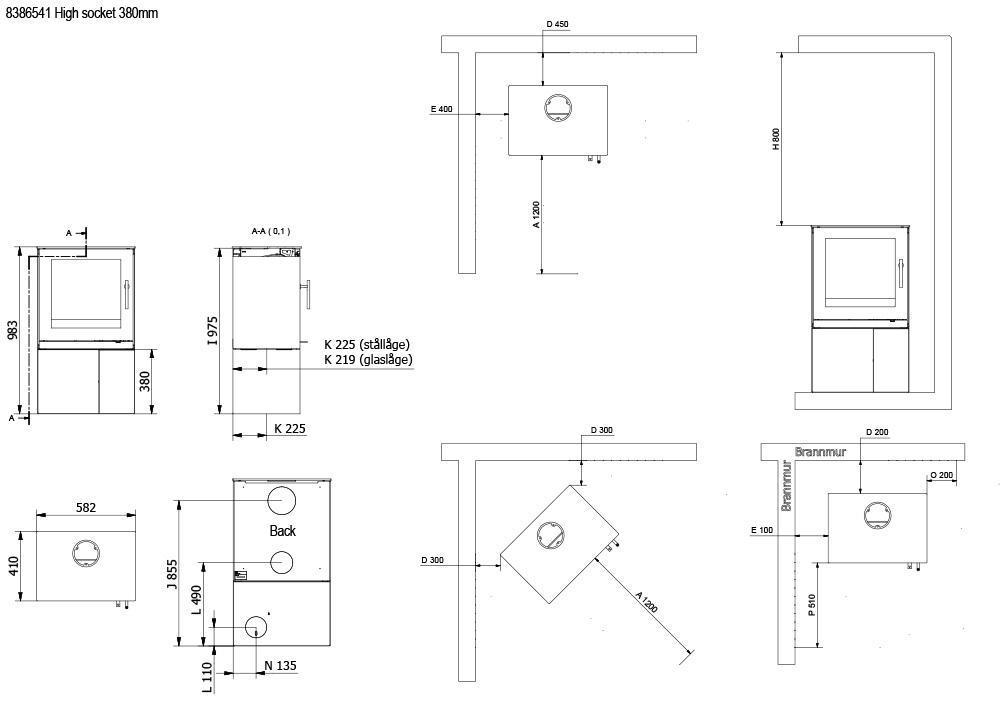

With base

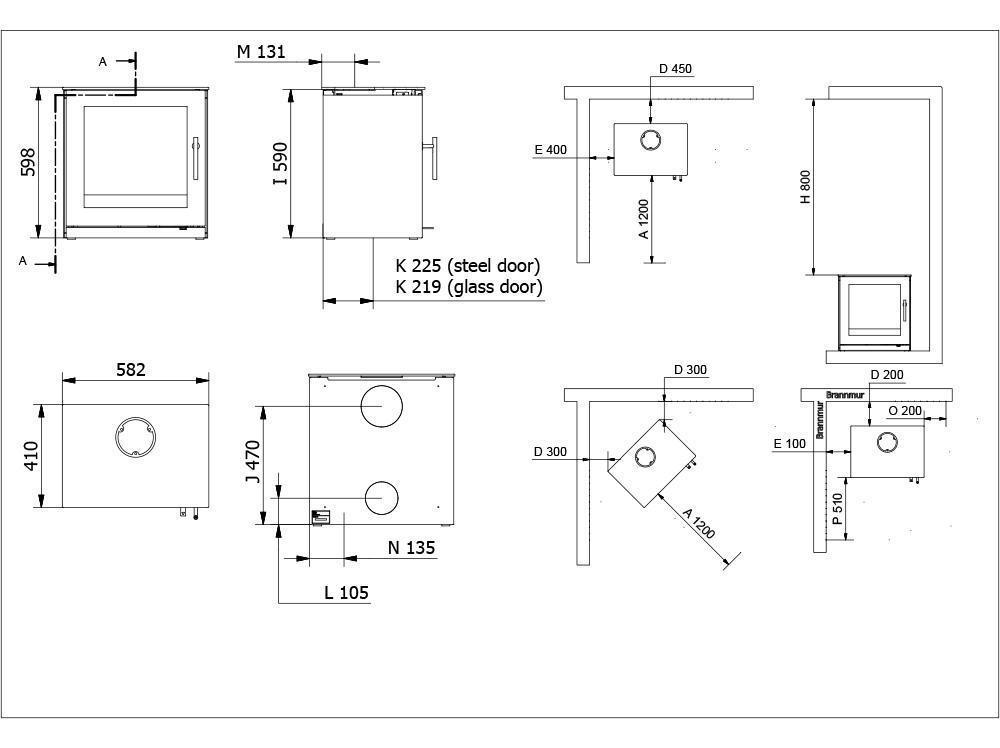

Without base
Technical Data
-
Dimensions (W-D-H)
- External dimensions (W-D-H) in mm: 582 - 410 - 975/598
- Combustion chamber inner dimensions (W-D-H) in mm: 446 - 277 - 265
- Flue outlet (diameter): 150
- Distance from centre to the back edge of the top plate in mm: 131
- Distance from floor to the centre of the AirSystem connection: 105/490
- Distance from floor to the centre of the flue outlet, top: 590/975
- Distance from floor to the centre of the flue outlet, back: 470/755
-
Output - Heating (at -20°C) in m2: 45 - 120
- Efficiency in %: 81%
- Particulates in g/kg: 1,8
- Weight in kg: 125/147
-
Distance to flammable material - To side wall in mm: 400
- To back wall in mm: 300
- Recommended distance in mm to non-flammable wall, sides and back: 50
-
Specifications - Steel door with glass: STANDARD
- Glass door: ACCESSORY
- Flue outlet, top and back: STANDARD
- Base: ACCESSORY
- Riddling grate and ash tray: STANDARD
- AirSystem: ACCESSORY
User Manual / Installation instructions
| User/installation manual | |
| Download installation/user manual | |
| Online installation/user manual | Online |
| User manual | Online |
| Declaration of Performance | |
| Information for architects RAIS provides CAD drawings for professional use by architects and other professionals. To be able to use our drawings, you must have Autocad version 2000 or version 14 or similar software installed on your computer. |
|
| Drawings UK | |
| Tegninger DK | |
| Tegninger NO | |
