RAIS Visio 70 F

RAIS Visio 70 F

Energi mærkning

RAIS Visio 70 F is the smallest of the Visio Gas front models. The glass of this gas fireplace is 70 cm wide. A simple and discreet frame gives you a better view of the flames. The front models come with non-reflective glass, so you almost do not notice the glass – just gorgeous flames. Simply press the remote control, and in minutes you get cosy warmth in your home.

This model comes with a black or stainless steel frame.

Connects to natural gas, city gas, LPG or biogas.


Gallery

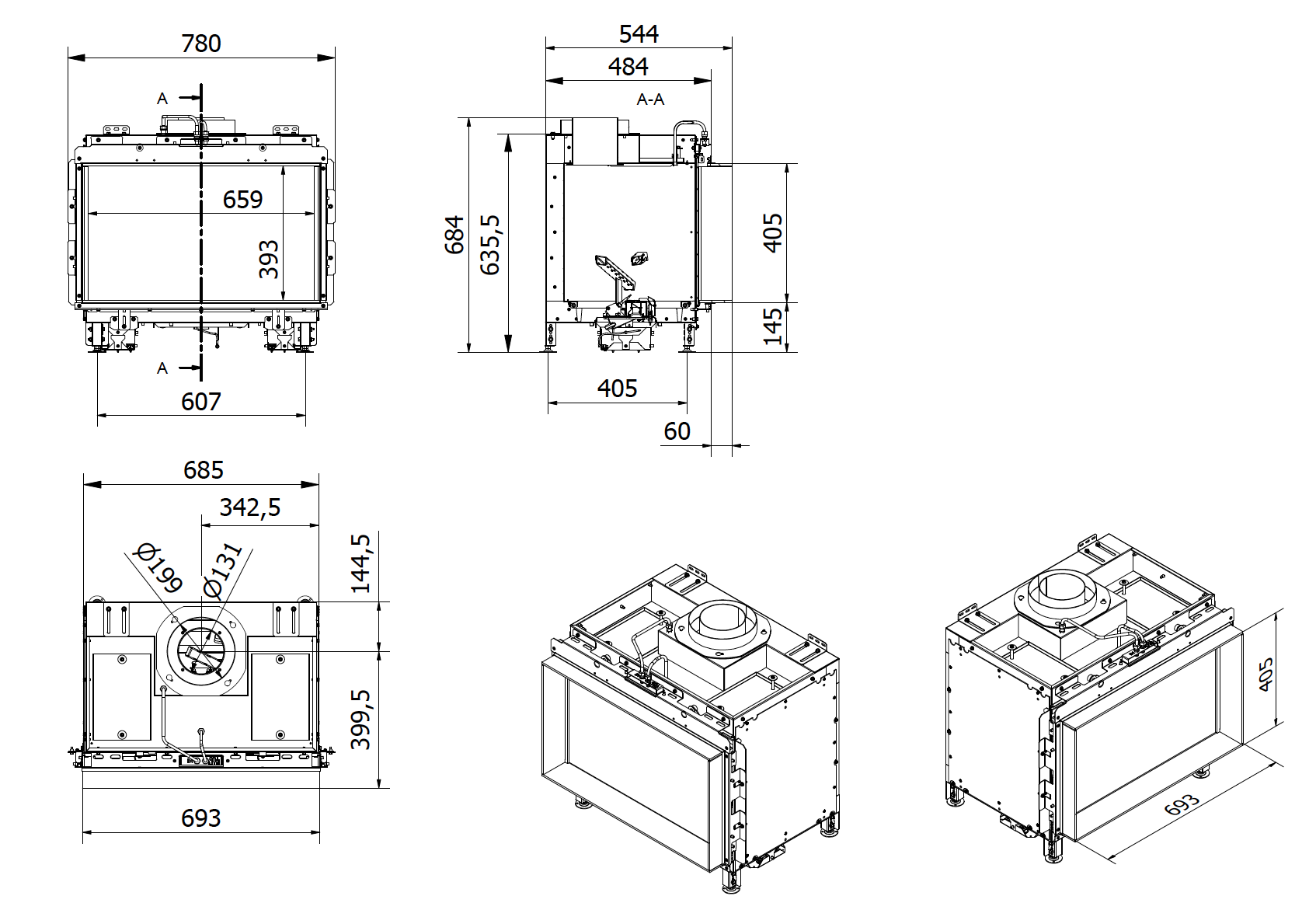

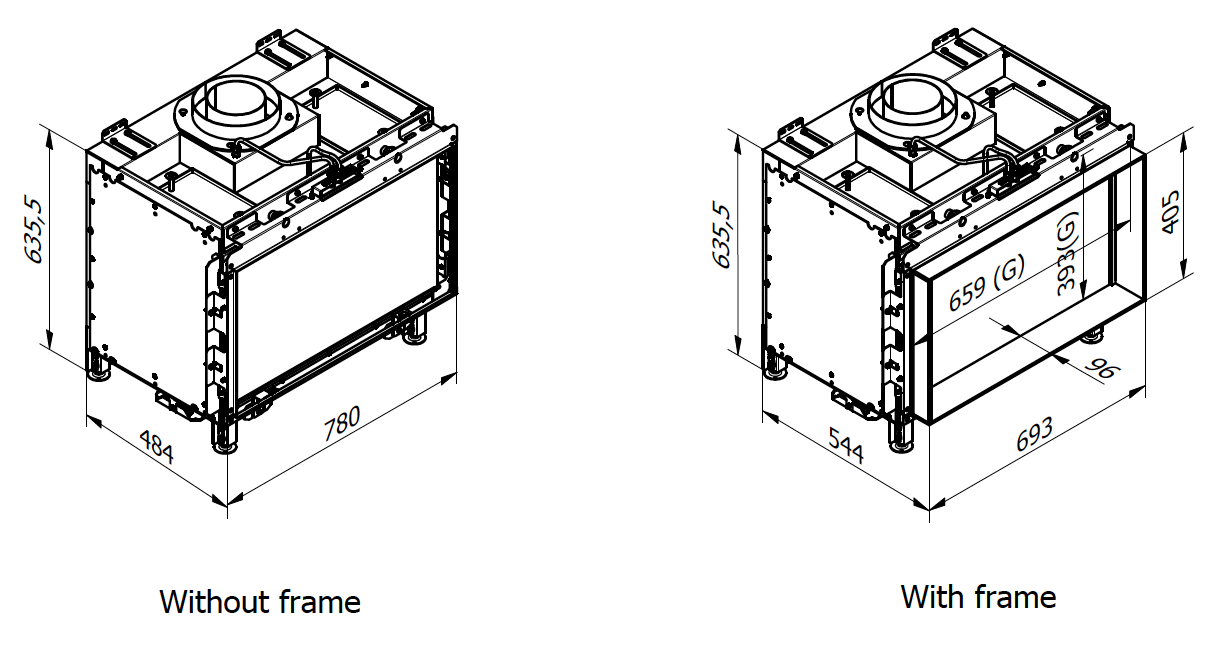

Drawings

RAIS Visio 70 F RAIS Visio 70 F RAIS Visio 70 F

Technical Data

  • Dimensions (W-D-H)
  • External dimensions in mm:: 780 x 538 x 684
  • Installation dimensions:: 693 x 405
  • Outer frame dimensions in mm:: 693 x 405
  • Flue outlet (diameter):: Ø100 / Ø150
  • Outer diameter gas connection:: Ø8

  • Output
  • NATURGAS: 1,9 - 8,8
  • PROPANGAS: 1,8 - 8
  • RATED OUTPUT (KW): 80.1
  • Weight in kg: 110

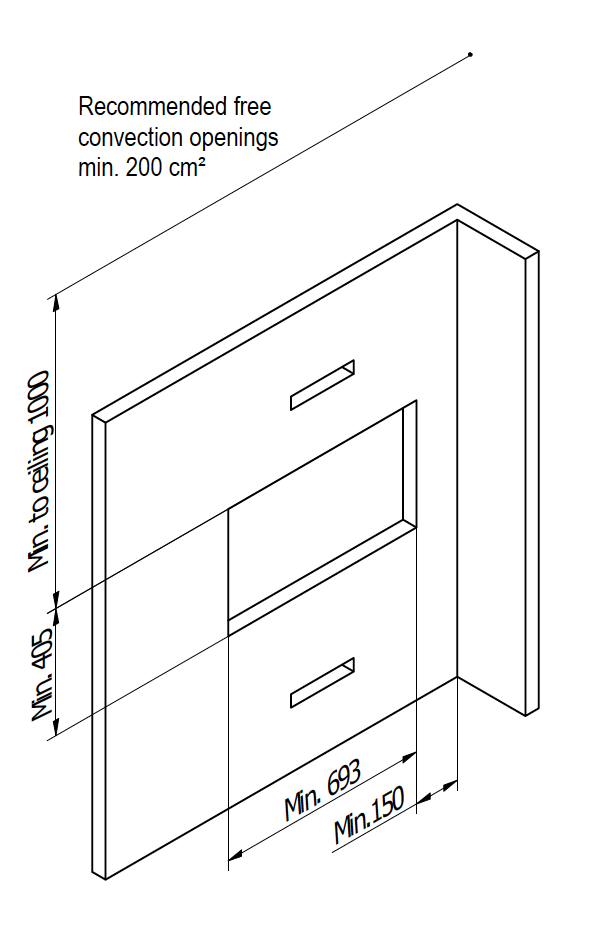

  • Distance to flammable material
  • To the ceiling in mm: 1000
  • To the floor in mm: 150
  • Distance from flammable materials to glass in mm: 500

User Manual / Installation instructions

User/installation manual
Installation manual
User manual
  • Drawings

    RAIS Visio 70 F RAIS Visio 70 F RAIS Visio 70 F
  • Technical Data

    • Dimensions (W-D-H)
    • External dimensions in mm:: 780 x 538 x 684
    • Installation dimensions:: 693 x 405
    • Outer frame dimensions in mm:: 693 x 405
    • Flue outlet (diameter):: Ø100 / Ø150
    • Outer diameter gas connection:: Ø8

    • Output
    • NATURGAS: 1,9 - 8,8
    • PROPANGAS: 1,8 - 8
    • RATED OUTPUT (KW): 80.1
    • Weight in kg: 110

    • Distance to flammable material
    • To the ceiling in mm: 1000
    • To the floor in mm: 150
    • Distance from flammable materials to glass in mm: 500
  • User Manual / Installation instructions

    User/installation manual
    Installation manual
    User manual
