RAIS Visio 70 RD

RAIS Visio 70 RD

Energi mærkning

RAIS Visio 70 RD is, with its two glass fronts measuring 65 cm, the smallest of the two room divider models. This gas fireplace is ideal as a room divider in large rooms where you can enjoy the fire from two different sides. The three glass sides ensure an optimal view of the fire – and in this way truly do the fire justice. The gas fireplace is controlled by remote control or telephone/tablet, and the heat can be turned up and down as needed.

This model comes with a black or stainless steel frame.

Connects to natural gas, city gas, LPG or biogas.


Gallery

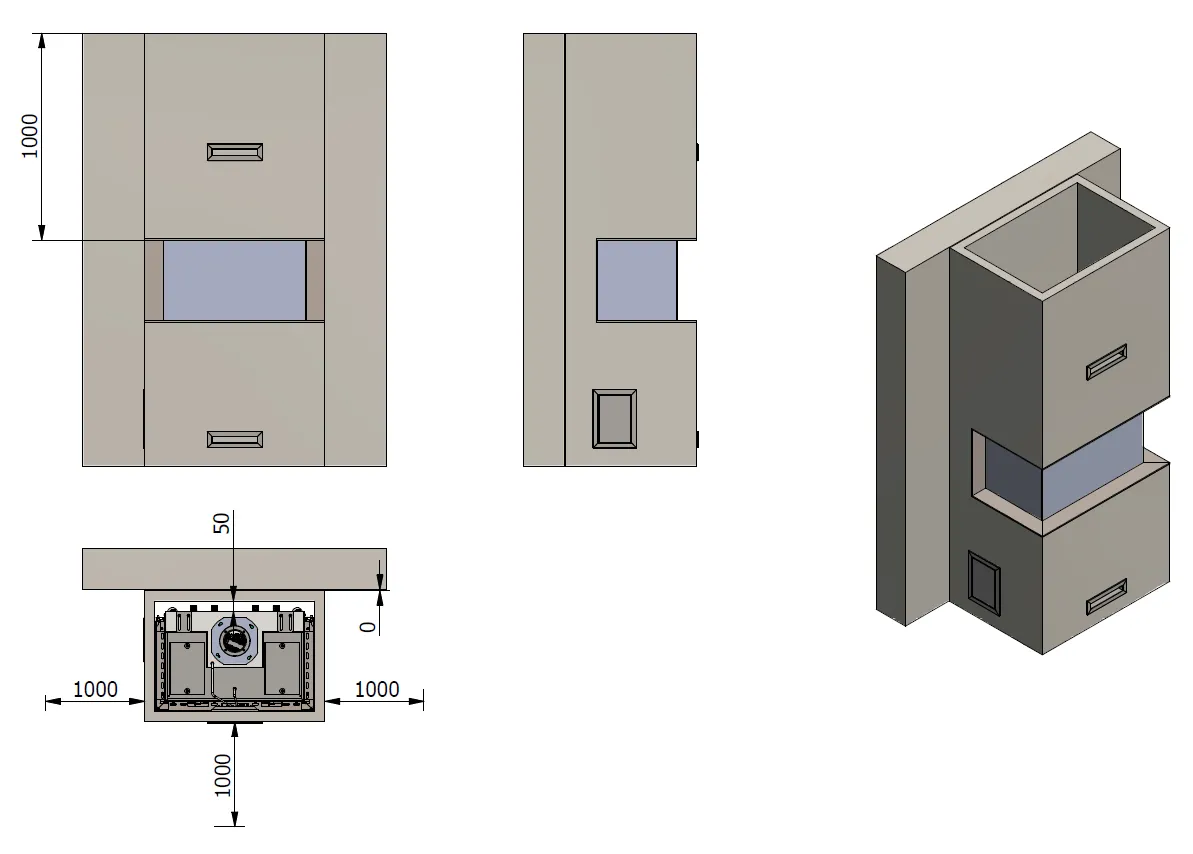

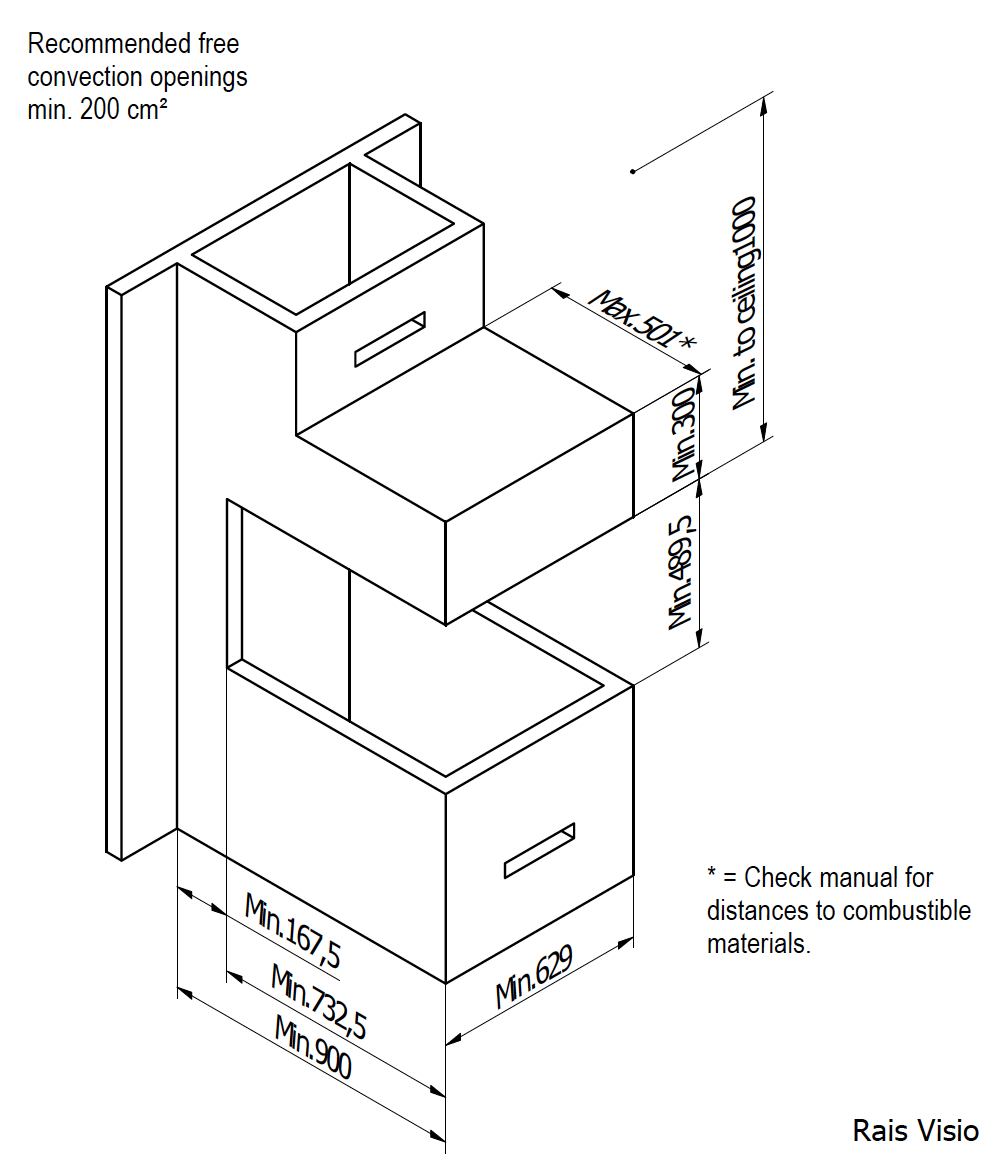

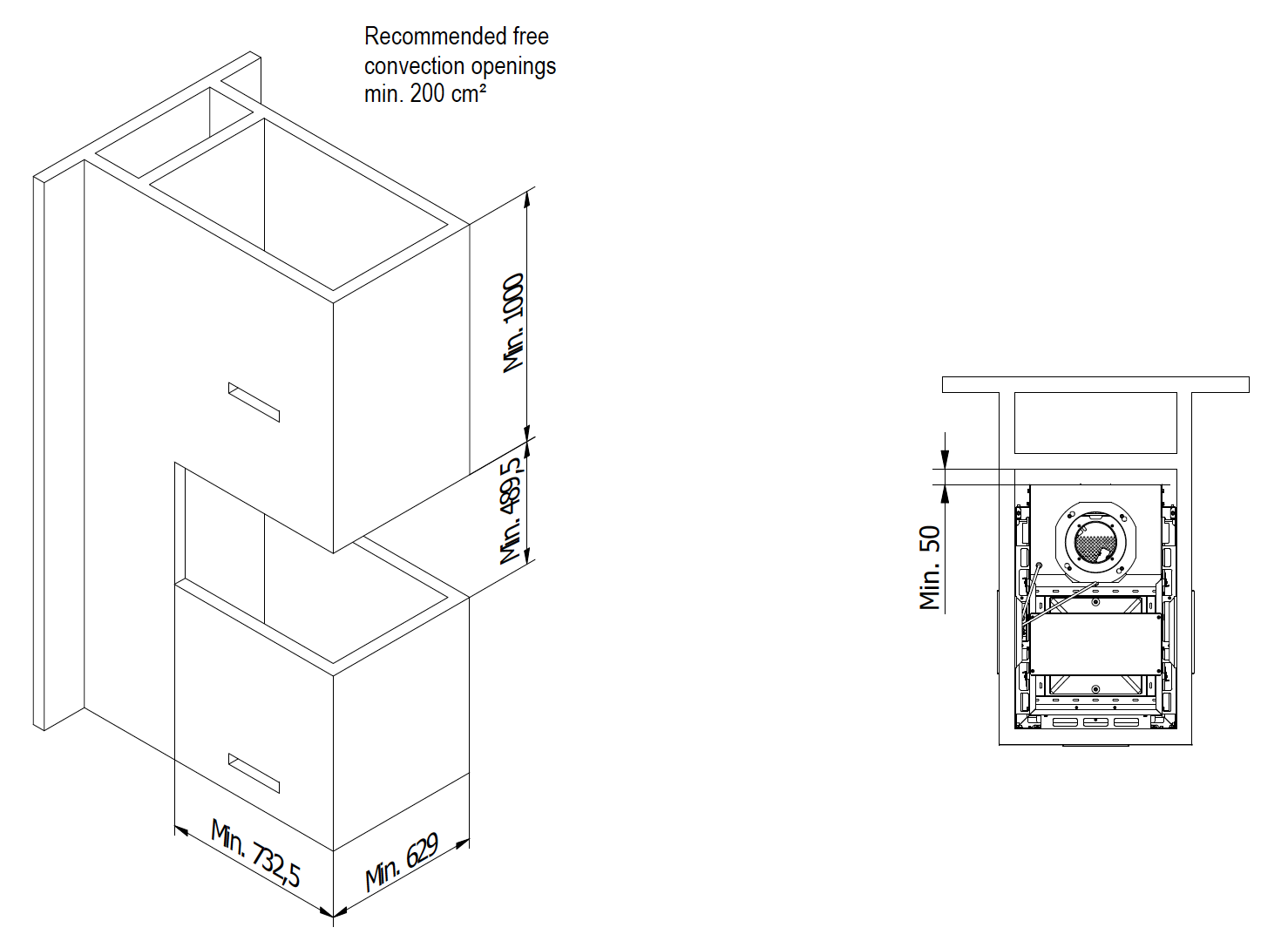

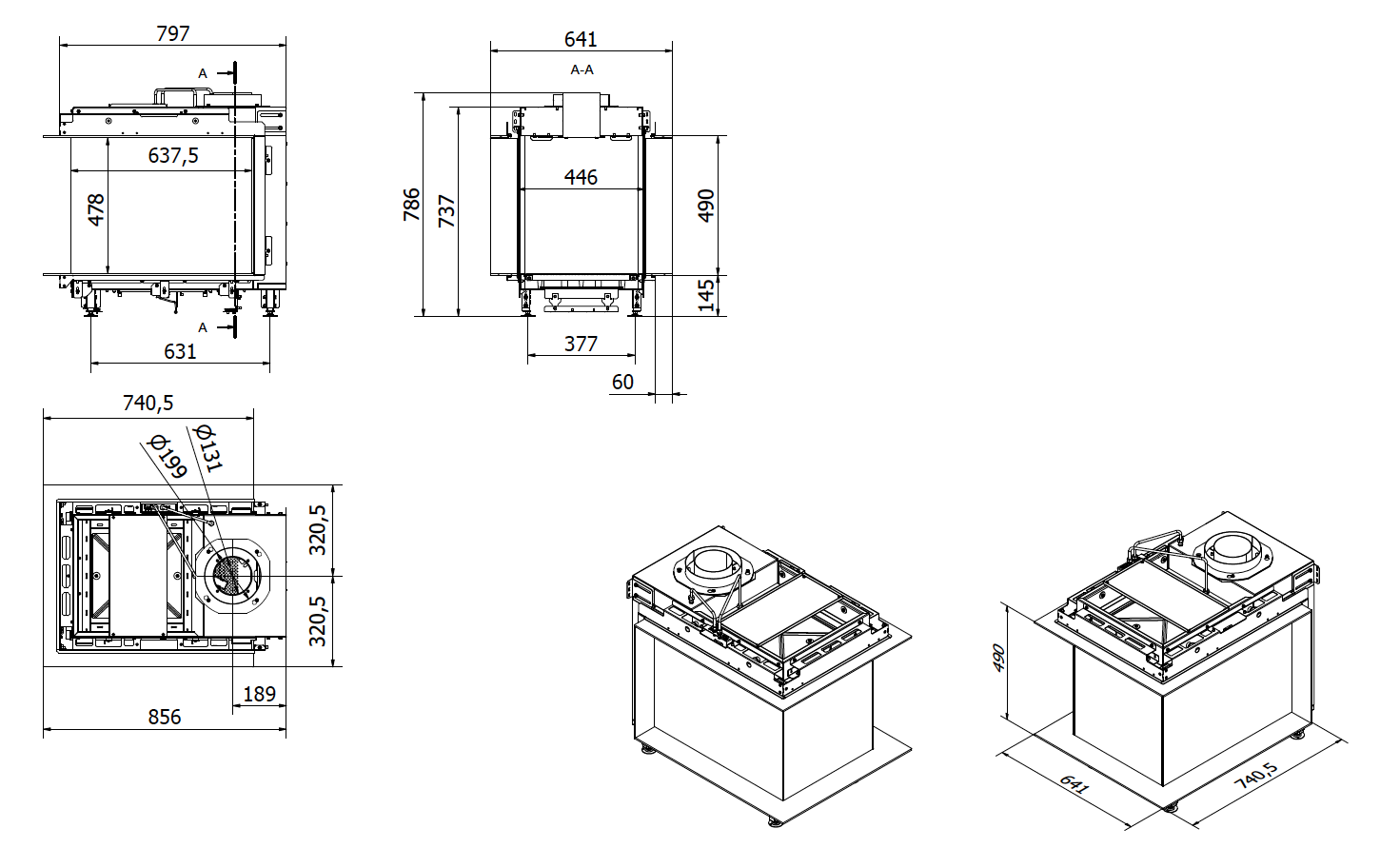

Drawings

RAIS Visio 70 RD RAIS Visio 70 RD RAIS Visio 70 RD

Technical Data

  • Dimensions (W-D-H)
  • External dimensions in mm:: 629 x 848,5 x 779
  • Installation dimensions:: 629 x 732,5 x 489,5
  • Outer frame dimensions in mm:: 629 x 732,5 x 489,5
  • Flue outlet (diameter):: Ø100 / Ø150
  • Outer diameter gas connection:: Ø8

  • Output
  • NATURGAS: 2,5 - 11
  • PROPANGAS: 2,4 - 10,8
  • RATED OUTPUT (KW): 80.1
  • Weight in kg: 125

  • Distance to flammable material
  • To the ceiling in mm: 1000
  • To the floor in mm: 150
  • Distance from flammable materials to glass in mm: 500

User Manual / Installation instructions

User/installation manual
Installation manual
User manual
  • Drawings

    RAIS Visio 70 RD RAIS Visio 70 RD RAIS Visio 70 RD
  • Technical Data

    • Dimensions (W-D-H)
    • External dimensions in mm:: 629 x 848,5 x 779
    • Installation dimensions:: 629 x 732,5 x 489,5
    • Outer frame dimensions in mm:: 629 x 732,5 x 489,5
    • Flue outlet (diameter):: Ø100 / Ø150
    • Outer diameter gas connection:: Ø8

    • Output
    • NATURGAS: 2,5 - 11
    • PROPANGAS: 2,4 - 10,8
    • RATED OUTPUT (KW): 80.1
    • Weight in kg: 125

    • Distance to flammable material
    • To the ceiling in mm: 1000
    • To the floor in mm: 150
    • Distance from flammable materials to glass in mm: 500
  • User Manual / Installation instructions

    User/installation manual
    Installation manual
    User manual
