RAIS Nexo 100

RAIS Nexo 100

Energi mærkning

Nexo 100 is the epitome of clean lines and streamlined design. This stove features a very large glass pane and a large chamber, so you can truly enjoy the fire. Choose among six different colours, side glass, handles and much more, so the stove fits perfectly into your home interior. A super modern stove – also in terms of quality, combustion and the environment.

Comes with a manual damper or with CleverAir, which automatically controls the air intake and ensures optimal combustion.

This model also comes as a gas fireplace.


DEFRA logo BW


Gallery

Drawings

Nexo afstande til brændbart uisoleret røgrør
Nexo afstande til brændbart isoleret røgrør

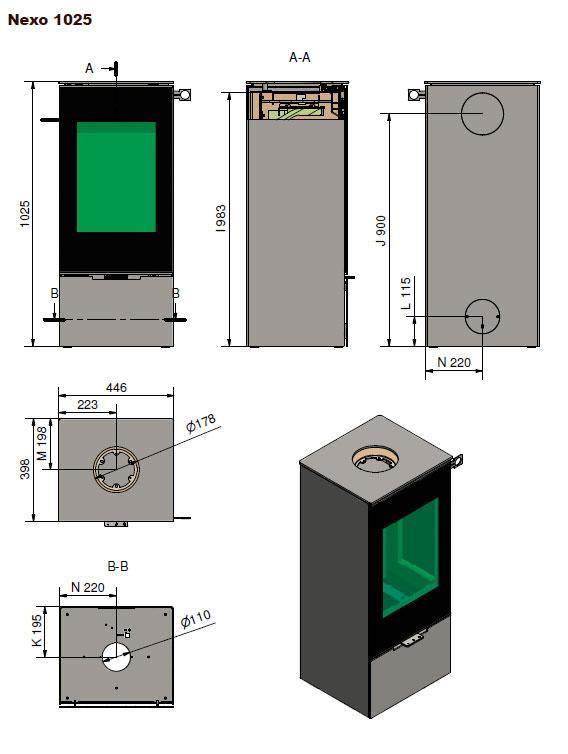

Målskitse 1

Technical Data

  • Dimensions (W-D-H)
  • External dimensions (W-D-H) in mm: 446-398-1025 mm
  • Combustion chamber inner dimensions (W-D-H) in mm: 344-253-510 mm
  • Flue outlet (diameter): 150 mm
  • Distance from centre to the back edge of the top plate in mm: 198 mm
  • Distance from floor to the centre of the AirSystem connection: 115 mm
  • Distance from floor to the centre of the flue outlet, top: 983 mm
  • Distance from floor to the centre of the flue outlet, back: 900 mm
  • RATED OUTPUT (KW): 5 kW

  • Output
  • OUTPUT (MIN-MAX): 3-7 kW
  • Heating (at -20°C) in m2: 45-105 m2
  • Weight in kg: 125 kg

  • Distance to flammable material
  • To side wall in mm: 350/450 mm
  • To back wall in mm: 100 mm
  • To furniture: 900 mm

  • Specifications
  • Steel door with glass: STANDARD
  • Glass door: ACCESSORY
  • Side glass: ACCESSORY
  • Handle with different design: ACCESSORY
  • Flue outlet, top and back: STANDARD
  • Riddling grate and ash tray: STANDARD
  • AirSystem: ACCESSORY
  • CleverAir: ACCESSORY
  • Swivel base with rotating flue collar: ACCESSORY
  • Top plate, stainless steel: ACCESSORY

User Manual / Installation instructions

User/installation manual
Installation manual
User manual
