RAIS Q-Tee insert

Find dealer
Questions about?

Are you interested in this product?

Fill in the fields and we will contact you as soon as possible.

Fill out my online form.

The Q-Tee insert is simply a smart little unit, which makes it possible to have a cosy fire where there was otherwise no room! The upright shape can fit into the existing chimney as well as in crammed spaces. So now you can also have your fireplace in a kitchen, flat or in a corner - places you have never expected this to be an option. There is a shaking grate and a useful ash tray. The stove is available with top or rear outlet for the flue duct. AirSystem is also available for the Q-Tee insert, taking combustion air from the outside - designed for low energy houses.

HETAS Logo BW  DEFRA logo BW

  • Energi - EU Data sheet

    Technical Data

    External dimensions (W-D-H) in mm
    463 - 375 - 603
    Combustion chamber inner dimensions (W-D-H) in mm
    310 - 270 - 270
    Installation dimensions (W-D-H) in mm
    473 - 425 - 613
    Outer frame dimensions (W-D-H) in mm
    489 - 629
    Flue outlet (diameter)
    150
    Rated output
    4,1
    Output
    Output (min-max) in kWh
    2 - 6
    Heating (at -20°C) in m2
    30 - 90
    Efficiency in %
    80%
    Particulates in g/kg
    0,8
    Distance to flammable material
    To side wall in mm
    200
    To back wall in mm
    100
    To the ceiling in mm
    800
    To the floor in mm
    400
    To furniture
    650
    Weight in kg
    87
    Steel door with glass
    Standard
    Glass door
    Accessory
    Flue outlet, top and back
    Standard
    Riddling grate and ash tray
    Standard
    AirSystem
    Accessory
    Frame in special dimensions
    Accessory

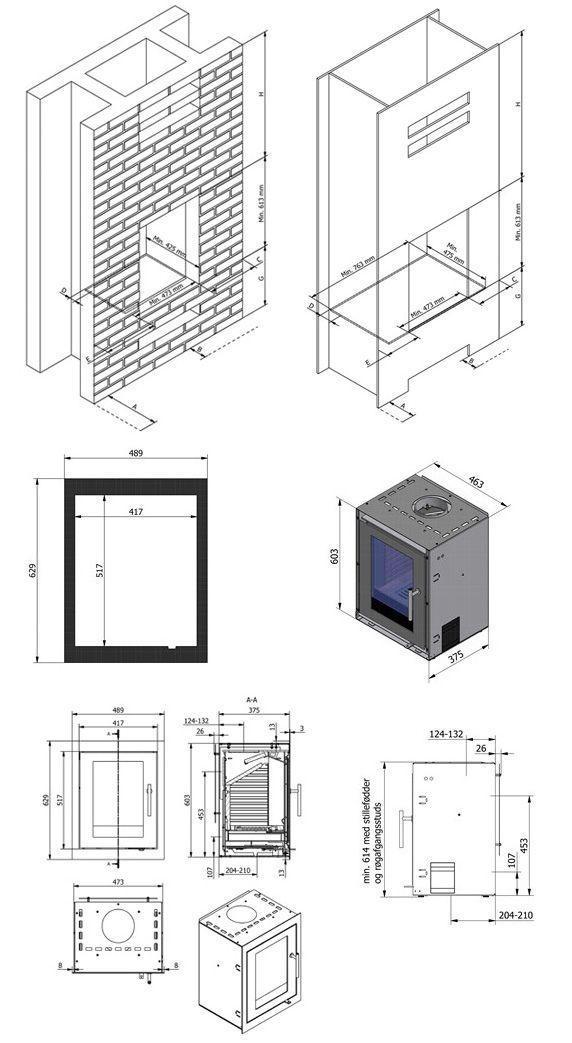

  • DRAWINGS



    Indbygningsmål

    Mursten brandhæmmende materiale

    tegningqteeindsatas

  • Documents

    User/installation manual
    Installation/user manual
    Declaration of Performance .pdf

    Information for architects
    RAIS provides CAD drawings for professional use by architects and other professionals. To be able to use our drawings, you must have Autocad version 2000 or version 14 or similar software installed on your computer.
    Q-tee_Drawing .pdf
    Q-Tee insert - 83690 .adsk
    Q-Tee insert - 83690 .dwg
    Q-Tee insert - 83690 .ipt
    Q-Tee insert - 83690 .sat
