RAIS 700

RAIS 700

Energi mærkning

This new classic design is best for the super-minimalist architect-designed home, or for the classic décor. The clean lines of the insert are completed by the special handle you would hardly notice. Space for large logs and an impressive view of the flames. Superb combustion. Door in classic steel and glass, or pure glass door.

HETAS Logo BW  DEFRA logo BW

Gallery

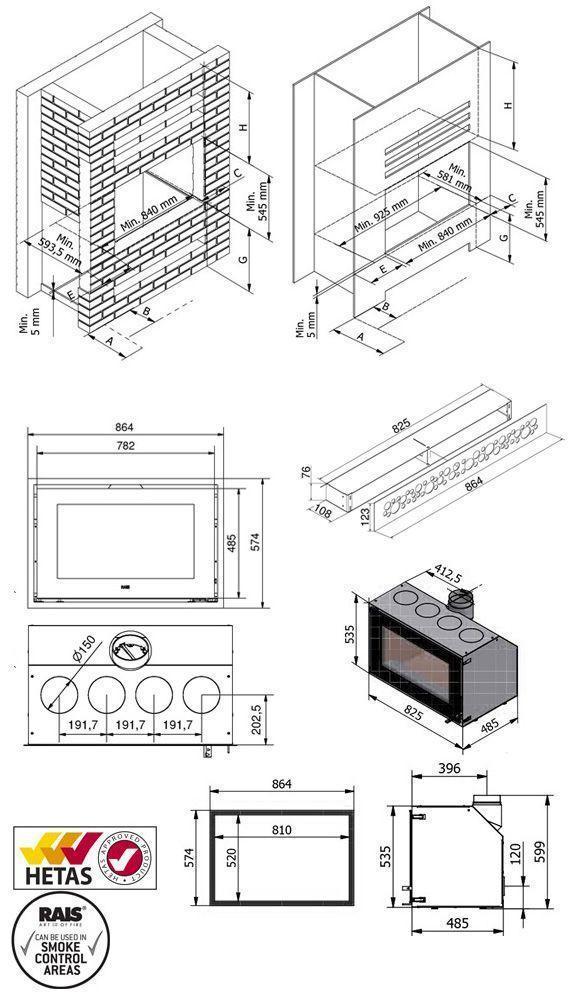

Drawings


Finished face opening
Brick Fire retardant material
tegninger 700 ny

Technical Data

  • Dimensions (W-D-H)
  • External dimensions (W-D-H) in mm: 829 - 478 - 541
  • Combustion chamber inner dimensions (W-D-H) in mm: 562 - 286 - 300
  • Installation dimensions (W-D-H) in mm: 840 - - - 545
  • Outer frame dimensions (W-D-H) in mm: 864 - - - 574
  • Flue outlet (diameter): 150

  • Output
  • Heating (at -20°C) in m2: 60 - 105
  • Efficiency in %: 80%
  • Particulates in g/kg: 2,59
  • Weight in kg: 125

  • Distance to flammable material
  • To side wall in mm: 300
  • To back wall in mm: 110
  • To the ceiling in mm: 850
  • To the floor in mm: 400
  • To furniture: 700

  • Specifications
  • Steel door with glass: STANDARD
  • Glass door: ACCESSORY
  • Flue outlet, top: STANDARD
  • AirSystem: ACCESSORY
  • Frame in special dimensions: STANDARD

User Manual / Installation instructions

User/installation manual
Installation/user manual Online
Declaration of performance .pdf

Information for architects
RAIS provides CAD drawings for professional use by architects and other professionals. To be able to use our drawings, you must have Autocad version 2000 or version 14 or similar software installed on your computer.
autcadeksempel .gif
AutoCAD .dxf
Rais700-70990 .adsk
Rais700-70990 .ipt
Rais700-70990 .sat
Rais700-70990 .dwg
