Design it yourself…
RAIS 500³

RAIS 500³

Energi mærkning

RAIS 500-3 with glass on all three sides gives unique character to your home. The stove offers a generous view of the flames, making it a central spreader of joy in your home. Elegant and discreet handle, simple operation.

Glass door or classic door of steel with right- or left-side hinge. Place for large logs, unique combustion and good environmental characteristics. Can be connected to AirSystem via the bottom or the rear wall.

DEFRA logo BW

Gallery

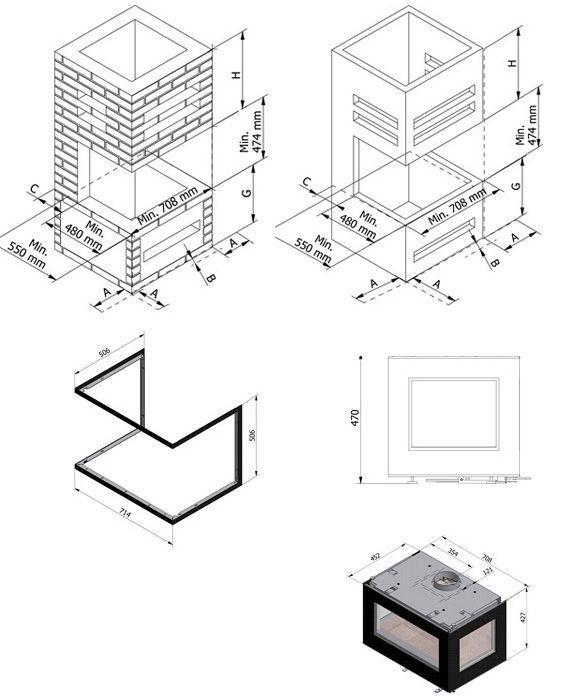

Drawings


Finished face opening
Brick Fire retardant material
tegninger 500 3ny

Technical Data

  • Dimensions (W-D-H)
  • External dimensions (W-D-H) in mm: 708 - 452 - 470
  • Combustion chamber inner dimensions (W-D-H) in mm: 556 - 306 - 295
  • Installation dimensions (W-D-H) in mm: 703 - 480 - 474
  • Outer frame dimensions (W-D-H) in mm: 714 - 506 - 506
  • Flue outlet (diameter): 150

  • Output
  • Heating (at -20°C) in m2: 60 - 120
  • Efficiency in %: 80%
  • Particulates in g/kg: 1,8
  • Weight in kg: 110

  • Distance to flammable material
  • To side wall in mm: 200
  • To back wall in mm: 100
  • To the ceiling in mm: 850
  • To the floor in mm: 400
  • To furniture: 900

  • Specifications
  • Steel door with glass: STANDARD
  • Glass door: ACCESSORY
  • Flue outlet, top: STANDARD
  • AirSystem: ACCESSORY
  • Frame in special dimensions: ACCESSORY

User Manual / Installation instructions

User/installation manual
Download installation/user manual .pdf
Online installation/user manual Online
Prøvningsattester .pdf
Declaration of Performance .pdf

Information for architects
RAIS provides CAD drawings for professional use by architects and other professionals. To be able to use our drawings, you must have Autocad version 2000 or version 14 or similar software installed on your computer.
Indbygningsmål_mursten_3G_salg .pdf
Indbygningsmål_panel_3G .pdf
RAIS_500-3G_Glass_door .pdf
RAIS_500-3S_Steel_door .pdf
rais500 .dxf
Rais500-3G-5119004 .dwg
RAIS_500-3S_5119104_dxf .dxf
RAIS_500-3G_5119004_dxf .dxf
Rais500-3G-5119004 .adsk
Rais500-3G-5119004 .ipt
Rais500-3G-5119004 .sat
